Catalog Home > Turbos & Housings > Garrett T series - Ball Bearing

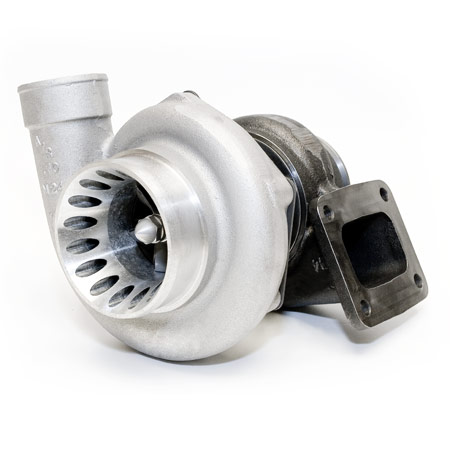

Garrett T04Z Ball Bearing Turbo *SOLD OUT - NO ETA - USE GRT-TBO-490*

Quantity in Basket: None
Code: GRT-TBO-055
Price: $9,999.00
Shipping Weight: 3.00 pounds

Quantity:

Turbine Housing A/R:
T3 (T31) Inlet; 4 Bolt Outlet .63AR
T3 (T31) Inlet; 4 Bolt Outlet .82AR
T4 Divided 1.00AR
T4 Undivided .61AR
T4 Undivided .70AR
T4 Undivided .96AR with 3" V-Band outlet
SS TiAL Compatible V-Band Inlet/Outlet .82AR
SS TiAL Compatible V-Band Inlet/Outlet 1.01AR
T3 Divided 1.16 A/R with 3" 4 Bolt Exit
T3 Divided 1.16 A/R with 3" 4 Bolt Exit but converted to 3" v-band via Welded on Flange
Alternate Compressor Housing:
I do not want the anti-surge compressor housing
Optional Polished Housing (Add $75):
Polished Housing(Add $75)
Polished Housing(Add $75)
Garrett T04Z Ball Bearing Turbo *SOLD OUT - NO ETA - USE GRT-TBO-490*




PRODUCT DESCRIPTION:
Dual Ball Bearing Garrett To4Z. 700-750HP potential flow. Compressor wheel diameter is 84mm exd. / 66.7mm ind. (63trim) Compressor housing is .70 A/R has a 4" inlet and 2.5" outlet slip on connection. Flexible range of T3, T4 (divided and undivided), and V-Band Turbine housings!

This unit is usually in stock and ships withing 1-2 days.


TURBINE HOUSING OPTIONS:
  • Divided T4 Housing with standard 3" V-Band Outlet: .70, .84, 1.00, or 1.15 A/R
  • Undivided T4 with standard 3" V-Band Outlet: .61, .70, or .96 A/R
  • T31 (T3) with 4 bolt outlet: .63 or .82 A/R
  • Stainless Steel TiAL compatible V-Band Inlet & Outlet: .82 or 1.01 A/R



  • TURBINE SPECIFICATIONS:
  • Wheel: 74.2mm w/ 76 trim
  • Maps


  • COMPRESSOR SPECIFICATIONS
  • Wheel: 84.0mm exd./66.7mm ind w/ 63 trim
  • Housing: 0.70 A/R
  • Maps


  • APPLICABLE GARRETT P/N's:
    740759-5002S


    Related Item(s)
    Related Parts:
    Code Name Price
    ATP-FLA-009 Aluminum - Oil Drain (Return) Flange T3 /T4, GT37, GT40, GT42, GTX42, GTX45 $13.95
    GRT-GSK-007 Oil Drain ( Return ) Flange Gasket (T3, GT37, GT40, GT42, GT45, GTX40, GTX42, GTX45) $1.65
    ATP-FTG-003 Banjo Fitting Kit for coolant lines - 14mm Machined Alum to 1/4" NPT $26.95
    ATP-OIL-021 -4 size Oil inlet fitting for GT28 GTX28 GT30 GTX30 GT35R G25 G30 G35 w/ built-in .035" RESTRICTOR $12.00
    ATP-FTG-004 14mm Banjo Fitting Set for coolant lines - 3/8" (10mm) Barb (common size) $18.00
    ATP-FTG-012 Fitting, Metric 14mm to -6AN, Male to Male (For coolant or oil) GT/GTX28 30 35 G Series $14.95
    ATP-FTG-029 -4 size Oil inlet fitting for T25/T28 or unrestricted GT25R/GT28R/GT30R/GT35R $8.50
    ATP-HSG-049 Compressor housing for T67/T04R/T04Z 84mm 63 trim wheel $186.99
    CHRA-T04Z CHRA, Garrett T04Z Ball Bearing - *Discontinued but other repair options are available* $99,999.00
    ATP-GSK-014 Gasket, T4 (T04) Turbine Inlet - DIVIDED $8.95
    GRT-GSK-006 Gasket, T4 (T04) Turbine Inlet - UNDIVIDED $8.00
    GRT-GSK-005 Gasket, T3 Turbine Inlet - UNDIVIDED $6.95
    ATP-GSK-012 Gasket, "T31" 4 Bolt Turbine Discharge Downpipe Gasket aka 2.5" 4 bolt $8.00
