Catalog Home > Turbos & Housings > Garrett G Series Resource Page > G42 - Garrett G Series > Garrett G42-1200C

Turbo Assembly Kit, G42-1200C, T4 Divided 1.28 A/R, Compact CHS, Garrett P/N 879779-5006S

Quantity in Basket: None
Code: GRT-TBO-J99
Price: $3,827.46
Shipping Weight: 10.00 pounds

Quantity:

Turbo Assembly Kit, G42-1200C,  T4 Divided 1.28 A/R, Compact CHS, Garrett P/N 879779-5006S


Product Description:

Click here to see the rest of the "G" 42 series

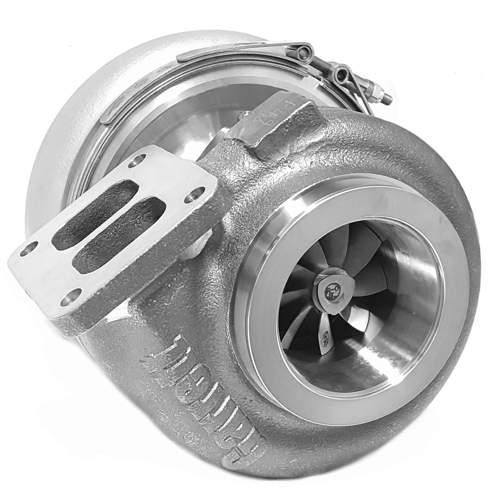

    Garrett® G42-1200 compact turbo assembly kit with 1.28 A/R T4 divided turbine housing. Capable of 1200HP!

Product Features:
  • Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine platforms
  • Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
  • Low inertia compressor wheel resulting in faster boost response
  • New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
  • Engineered with inconel super alloy to withstand operating temperatures up to 950C

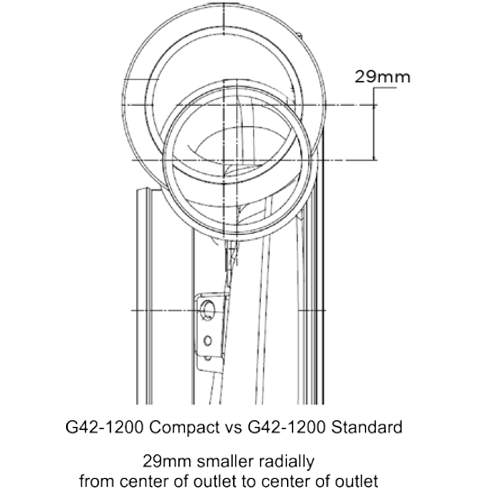

  • Compact option is 4mm shorter axially and 29mm smaller radially than the standard G42
Product Specifications:
  • Compressor Wheel Inducer: 73mm
  • Compressor Wheel Exducer: 91mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.90 w/ 4" inlet and 3" outlet hose connections
  • Turbine Wheel Inducer: 82mm
  • Turbine Wheel Exducer: 75mm
  • Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Garrett Part Numbers:
  • 879779-5006S
