Garrett GTX4088R Turbocharger, including Turbine Housing (GTX-R Series)

Quantity in Basket: None
Code: GRT-TBO-326
Price: $2,395.00
Shipping Weight: 3.00 pounds

Quantity:

Please choose Turbine Housing:

Check this box if you want to convert T3 Undivided Entry to V-band Entry
Optional Polished Housing ($95):
Optional Polished Housing ($95)
Optional Polished Housing ($95)
Garrett GTX4088R Turbocharger, including Turbine Housing (GTX-R Series)

GTX4088R and T3 Inlet Turbine Housing

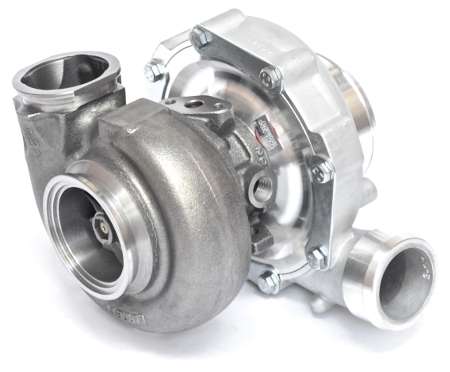

GTX4088R and optional V-Band Inlet Turbine Housing











PRODUCT DESCRIPTION:
New GTX4088R dual ball bearing turbo with ultra high flow compressor wheel and featuring Garrett 11-Blade technology. 850HP potential flow.

** Includes Turbine Housing. Choose from T4 Inlet, T3 Inlet, or V-band Inlet. 3" V-band Outlet.


PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 65.0mm
* Compressor Wheel Exducer: 88.4mm
* Compressor Wheel Trim: 54
* Turbine Wheel Inducer: 77.0mm
* Turbine Wheel Exducer: 68.0mm
* Turbine Wheel Trim: 78
* Standard compressor housing is T04H Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.


TURBINE HOUSING OPTIONS:
* T4 Divided Inlet, 3" V-band Outlet (.85, .95, 1.06 or 1.19 A/R)
* T3 Inlet, 3" V-band Outlet (.89, .99, or 1.11 A/R)
* V-band Inlet optional, 3" V-band Outlet. Available in .89, .99, or 1.11 A/R.


COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
  • Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
  • Oil feed Flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
  • Oil Feed Gasket: Product Code: GRT-GSK-011
  • Oil drain flange: Product Code: ATP-FLA-009
  • Oil drain gasket: Product Code: GRT-GSK-007
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

  • NOTE: Alternate coolant and oil fittings and flanges are available.




    COMPRESSOR & TURBINE MAPS:



    APPLICABLE GARRETT PART NUMBERS:

    * 825614-5002S

    * 825614-5004S

    * 825614-5005S

    * 803614-2

    * 803614-4

    * 803614-5

    * 751450-0021

    * 751450-21
