Garrett Undivided V-band Entry Turbine Housing in Ni-Resist For GT28 / GTX28 .72A/R
Quantity in Basket: None
Code: ATP-HSG-257
Price: $450.75
Shipping Weight: 10.00 pounds
Quantity:
Garrett Undivided V-band Entry Turbine Housing in Ni-Resist For GT28 / GTX28  .72A/R

PRODUCT DESCRIPTION:

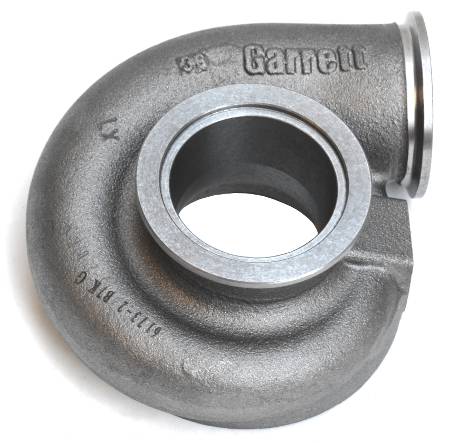

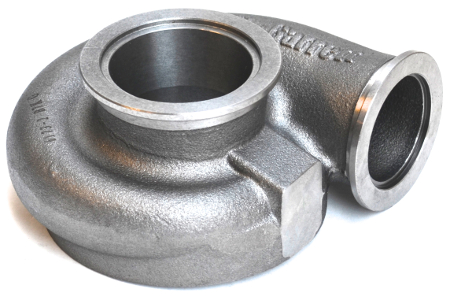

Garrett Undivided V-band inlet & outlet turbine housing in Ni-Resist material; for GT28 and GTX28 series turbochargers. The turbine housing is .72 A/R; and features unique compact V-band inlet and V-band outlet flange diameters.

includes a turbine inlet clamp and turbine outlet clamp.


PRODUCT CONTENTS:
* (1 unit) Ni-Resist Garrett turbine housing
* (1 unit) V-band clamp for turbine inlet
* (1 unit) V-band clamp for turbine outlet


APPLICATION NOTES:
* Compatible turbine housing inlet flange (product code: ATP-FLS-208)
* Compatible turbine housing outlet flange (product code: ATP-FLS-209)
* Compatible turbine housing inlet clamp (product code: CLC-CLA-035)
* Compatible turbine housing outlet clamp (product code: CLC-CLA-047)
* V-band flanges for the Garrett Ni-Resist GTX29, GT30 / GTX30, and GT35 / GTX35 are not compatible.


APPLICABLE GARRETT PART NUMBERS:
* 827690-0002


COMPATIBLE GARRETT TURBO MODELS:
* GT2860RS
* GT2871R
* GT2876R
* GTX2860R
* GTX2863R
* GTX2867R
* GTX2871R
* GEN2 GTX2860R
* GEN2 GTX2867R
