Ball Bearing Garrett GT5533R (aka GT55R) - 91MM
Quantity in Basket: None
Code: GRT-TBO-049
Price: $3,399.99
Shipping Weight: 78.00 pounds
Quantity:
Turbine Housing A/R:
1.00 A/R
1.24 A/R
1.40 A/R
1.78 A/R
1.12 A/R

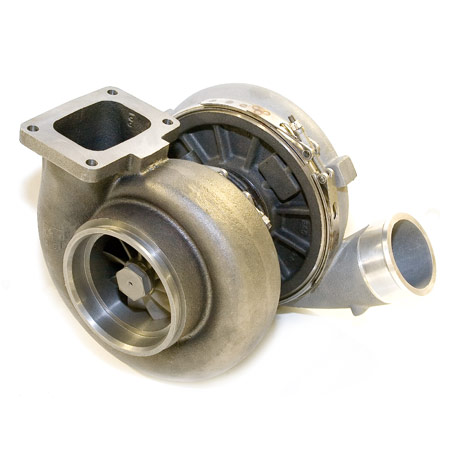

Ball Bearing Garrett GT5533R (aka GT55R) - 91MM



Turbo, Ball Bearing Garrett GT5533R (aka GT55R) . Capable of close to 1600HP! Compressor wheel diameter is 133mm exd. / 91.2mm ind. (47trim) Compressor housing is .69 A/R has a 6" inlet and 3.5" outlet slip on connection. Turbine housing uses a T6 undivided inlet and 5" V-band outlet.

Turbine
-Wheel: 111.4mm w/ 84 trim
-Housing: 1.0, 1.12, 1.24, 1.40 A/R
-Maps

Compressor
-Wheel: 133.0mm exd./91.2mm ind w/ 47 trim
-Housing: .69 A/R
-Maps



This unit is usually in stock and ships withing 1-2 days.


Applicable Garrett P/N's:

775844-5001S

769210-0003




Related Item(s)
Related Parts:
Code Name Price
CLC-CLA-022 V-Band Clamp - 5" $16.95
ATP-FLS-092 5" (Special) V-band Stainless Flange - GT47, GTX47, GT55, GTX55, GT50, GTX50 $34.00
ATP-FLA-035 Oil Return Flange For GT47, GTX47, GT55, GTX55, GT50, GTX50 Turbos $19.95
GRT-GSK-035 Oil Drain ( Return ) Gasket (GT47, GTX47, GTX50, GT55, GTX55 Turbos) $3.00
ATP-GSK-017 Gasket, T6 Turbine Inlet, UNDIVIDED $12.00
ATP-FLA-008 Aluminum - Oil Inlet Flange (T3, GT37, GT40, GT42, GT45, GT47, GTX50, GT55) $15.00
GRT-GSK-011 Oil inlet feed flange Gasket - Feed Flange (T3, GT37, GT40, GT42, GT45, GT47, GTX50, GT55) $3.00
