Garrett GTW3476R (aka GTW5857R) Ball Bearing - Select Housing Options

Quantity in Basket: None
Code: GRT-TBO-386
Price: $1,695.00
Shipping Weight: 3.00 pounds

Quantity:

Turbine Housing A/R (Default - 4 Bolt Outlet):
.48 A/R (Available in T3 Inlet; 4 Bolt, or V-band Outlet)
.63 A/R (Available in T3 Inlet; 4 Bolt OR 5 Bolt Ford Style)
.72 A/R (T25 Inlet; EWG 44 Port; 5 Bolt GT Outlet); Additional +$50.00
.72 A/R (T3 Inlet; Cosworth Outlet) Additional +$150.00
.82 A/R (Available in T3 Inlet; 4 Bolt, 5 Bolt Ford Style, or V-band Outlet)
Turbine Housing Options (Additional Cost May Apply):
T3 Inlet, 4 Bolt Outlet (2.5")
T3 Inlet, 4 Bolt Outlet (2.5")

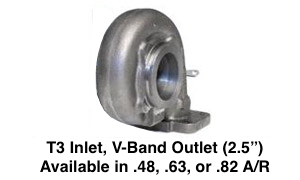

T3 Inlet, V-Band Outlet (2.5")
T3 Inlet, V-Band Outlet (2.5")
T3 Inlet, 5 Bolt (Ford Style) Outlet
T3 Inlet, 5 Bolt (Ford Style) Outlet
T25 Inlet, EWG 44 Port, 5 Bolt GT Outlet (.72 A/R ONLY +$50.00)
T25 Inlet, EWG 44 Port, 5 Bolt GT Outlet (.72 A/R ONLY +$50.00)
T3 Inlet, Cosworth Outlet (.72 A/R ONLY +$150.00)
T3 Inlet, Cosworth Outlet (.72 A/R ONLY +$150.00)
T3 Inlet, Welded GT 3" V-Band Outlet (.63 or .82 A/R +$50.00)
T3 Inlet, Welded GT 3" V-Band Outlet (.63 or .82 A/R +$50.00)
Compressor Housing Options:
T04S (4" Inlet, 2.5" Outlet) with cast-in anti-surge (Standard / Default) (GT35 Size)
Garrett GTW3476R (aka GTW5857R) Ball Bearing - Select Housing Options










PRODUCT DESCRIPTION:
GTW3476R (aka GTW5857R) ball bearing turbo. 700HP potential flow.

GTW Series - Garrett's Performance solution to the popular 5858 size turbo. Great performance at a competitive price!


PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 58.3mm
* Compressor Wheel Exducer: 76.4mm
* Compressor Wheel Trim: 58
* Turbine Wheel Inducer: 65.0mm
* Turbine Wheel Exducer: 56.6mm
* Turbine Wheel Trim: 76


APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Ball Bearing CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.


COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS:
* Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
* Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
* Oil drain flange: Product Code: ATP-FLA-042
* Oil drain gasket: Product Code: ATP-GSK-027
* 8mm x 1.25 (thread pitch) Bolts: Product Code: MIA-FST-034


COMPRESSOR HOUSING OPTIONS:
* T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge. Default / Standard Option
* T04E Frame with 4" inlet, 2" outlet, and built-in & machined anti-surge.


TURBINE HOUSING OPTIONS:
* T3 Inlet and 4 Bolt, 2.5 inch Outlet (Available in .48, .63, or .82 A/R) Default / Standard Option
* T25 Inlet, 5 Bolt GT Outlet, and built in 44 External Waste Gate Port (Available in .72 A/R) - Additional $50.00 option
* T3 Inlet and V-Band, 2.5 inch Outlet (Available in .48, .63, or .82 A/R)
* T3 Inlet and 5 Bolt Ford Style Outlet (Available in .48, .63, or .82 A/R)
* T3 Divided Inlet and 3 inch V-band Outlet (Available in .78 A/R) - Additional $50.00 option
* T3 Divided Inlet and 3 inch V-band Outlet (Available in 1.06 A/R) - Additional $50.00 option
* T3 Inlet and Cosworth Outlet (Available in .72 A/R) - Additional $150.00 option
* V-Band Inlet (machined from T3) and 2.5 inch V-Band Outlet (Available in .82 A/R)


APPLICABLE GARRETT PART NUMBERS:

* 757197-5009S

* 841691-5001S
