PRODUCT DESCRIPTION:

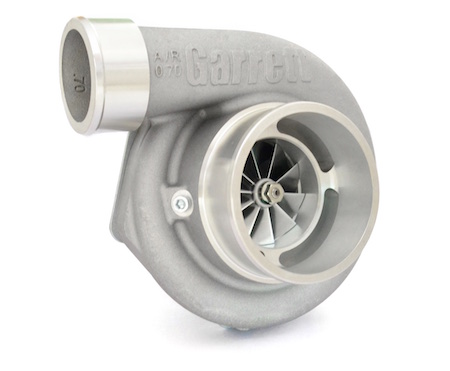

Garrett GEN2 Reverse Rotation GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!

The Garrett reverse rotation series spins counterclockwise and offers new housing layout options for applications where a standard turbocharger (spins clockwise) does not provide sufficient clearance. Upgrading an OEM counterclockwise spinning turbo has never been easier with the Garrett GEN2 GTX Reverse Rotation series!


PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

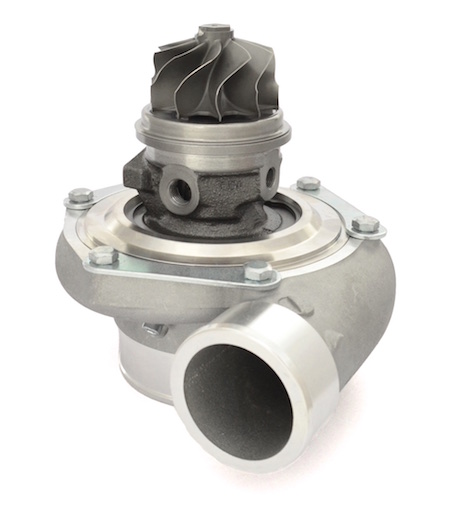

Dual ball bearing CHRA rotating assembly

Reverse Rotation CHRA rotating assembly (spins counterclockwise)

Potential upgrade turbo solution when standard rotation turbo exceeds space limitations

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 66mm

Compressor Wheel Exducer: 82mm

Compressor Wheel Trim: 64

Compressor Housing A/R: 0.70

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84

TURBINE HOUSING OPTIONS:

Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R

COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines

Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)

Oil drain flange: Product Code: ATP-FLA-010

Oil drain gasket: Product Code: GRT-GSK-008

8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

NOTE: Alternate coolant and oil fittings and flanges are available.



COMPRESSOR & TURBINE MAPS:



APPLICABLE GARRETT PART NUMBERS:

844626-5004S

856803-5004S

856803-5005S

856803-5006S
