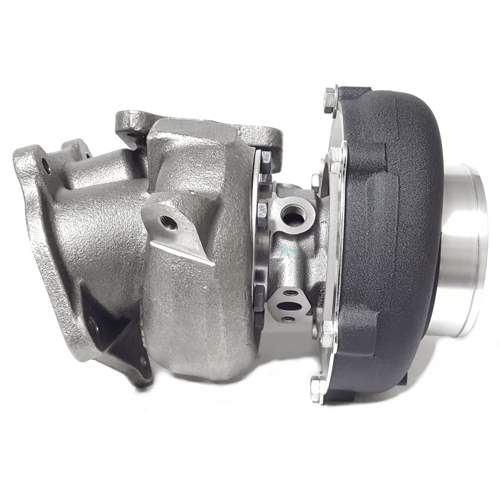

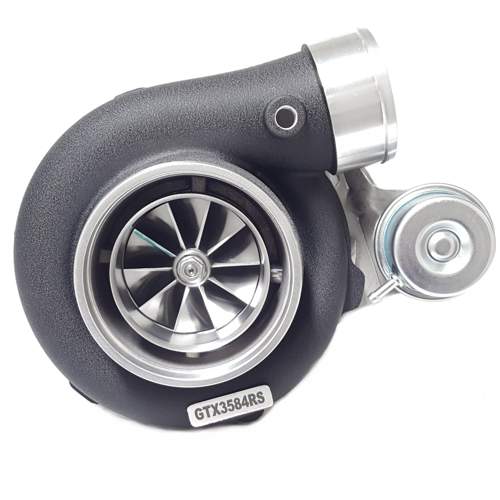

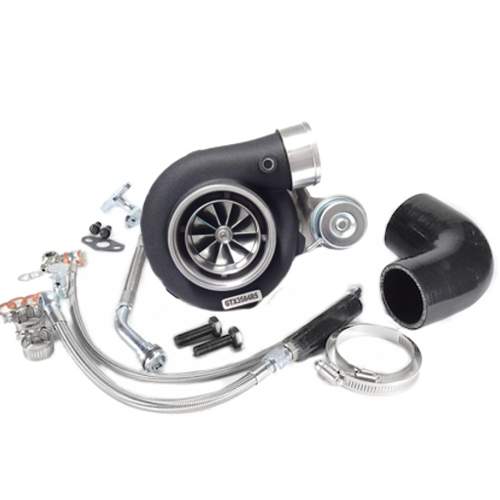

Turbocharger Kit, Evo X, Gen2 GTX3584RS,4" in/ 2.5" out Anti-Surge Comp. Hsg w/ .94 A/R Tbn Hsg
Quantity in Basket: None
Code: ATP-VEVO-186
Price: $3,195.00
Shipping Weight: 3.00 pounds
Quantity:
Turbocharger Kit, Evo X, Gen2 GTX3584RS,4



Product Description:
    Garrett Gen2 GTX3584RS EVO X turbo kit with a high capacity 4" inlet and 2.5" outlet anti-surge compressor housing and a .94 A/R internally gated turbine housing.
Product Features:
  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Capable of 1,000 HP
Application Notes:
    Compressor housing has a 4" Inlet ported shroud and 2.5" outlet. The compressor housing REQUIRES:
    1. Custom hose connection 4 inch intake pipe (not included)
    2. Custom charge pipe or 2.5" diameter outlet adapter (not included)
Product Specifications:
  • Compressor Wheel Inducer: 67 mm
  • Compressor Wheel Exducer: 84 mm
  • Compressor Wheel Trim: 64
  • Compressor Housing: T04E Frame, .60 A/R, 4" Ported Shroud Inlet, 2.5" Outlet, requires custom intake and outlet charge pipes
  • Turbine Wheel Inducer: 68 mm
  • Turbine Wheel Exducer: 62 mm
  • Turbine Wheel Trim: 84
Compressor & Turbine Maps:
