PRODUCT DESCRIPTION:

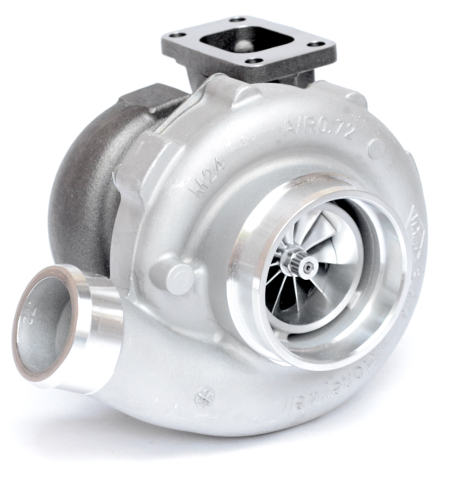

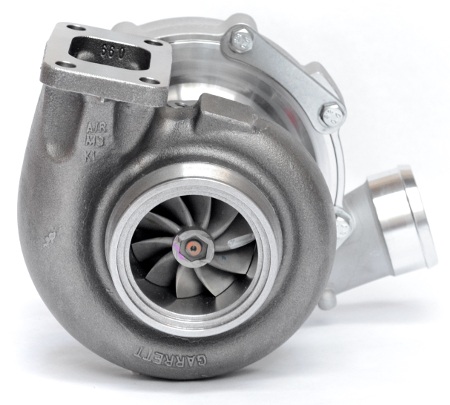

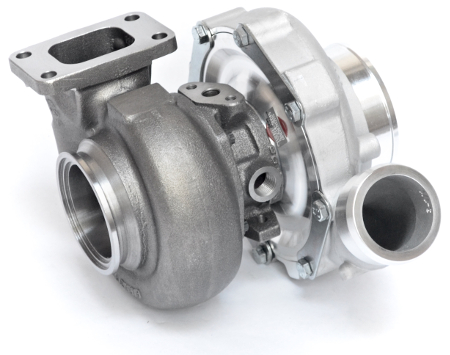

New GTX4088R dual ball bearing turbo with ultra high flow compressor wheel and featuring Garrett 11-Blade technology. 850HP potential flow.
** Includes T3 Inlet and 3" V-band Outlet turbine housing (available A/R sizes .89, .99, or 1.11 A/R). Optional V-band Inlet ($50.00 Additional).
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 65.0mm
* Compressor Wheel Exducer: 88.4mm
* Compressor Wheel Trim: 54
* Turbine Wheel Inducer: 77.0mm
* Turbine Wheel Exducer: 68.0mm
* Turbine Wheel Trim: 78
* Standard compressor housing is T04H Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
TURBINE HOUSING OPTIONS:
* T3 Inlet, 3" V-band Outlet (.89, .99, or 1.11 A/R)
* V-band Inlet optional ($50.00 additional)
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
Oil feed Flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
Oil Feed Gasket: Product Code: GRT-GSK-011
Oil drain flange: Product Code: ATP-FLA-009
Oil drain gasket: Product Code: GRT-GSK-007
8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
T3 Inlet Gasket: Product Code:GRT-GSK-005
Exhaust/Turbo Manifold Flange/Clamp set (for Downpipe): Product Code:CLC-CLA-274
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
* 825614-5002S
* 825614-5004S
* 825614-5005S
* 803614-2
* 803614-4
* 803614-5
* 751450-0021
* 751450-21
