Catalog Home > Class Legal Turbos > Redline Time Attack > Street Class

Garrett Gen2 GTX2867R - RB26DETT Drop-In Upgrade Turbo, 1 single Turbo

Quantity in Basket: None
Code: GRT-TBO-620
Price: $2,295.00
Shipping Weight: 23.00 pounds

Quantity:

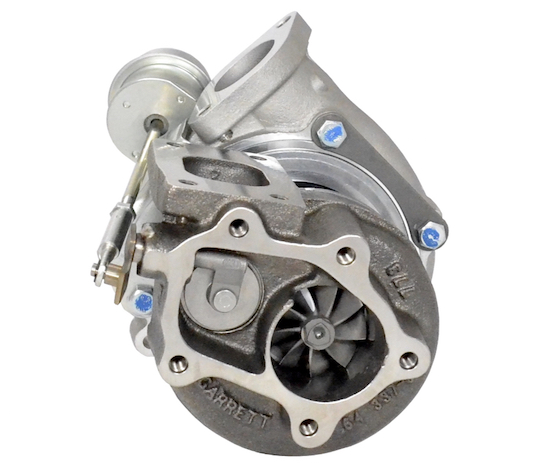

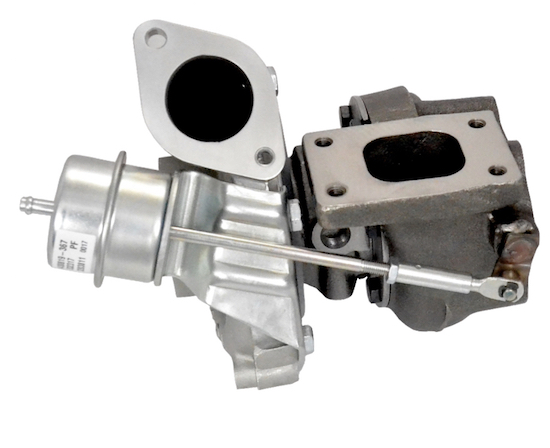

Garrett Gen2 GTX2867R - RB26DETT Drop-In Upgrade Turbo, 1 single Turbo

Click to enlarge images


PRODUCT DESCRIPTION:
Garrett GEN2 GTX2867R dual ball bearing turbo for the Nissan Skyline GT-R RB26DETT. Bolt-on turbo solution for stock flange exhaust manifolds and O2 housings/dump pipes!

Includes One (1) turbo per unit.

PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
  • Bolt-on for Nissan RB26DETT motor

  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 50mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 55
  • Compressor Housing: 0.60 A/R, RB26DETT Style 2 bolt inlet flange and 2 bolt outlet flange
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 47mm
  • Turbine Wheel Trim: 76
  • Turbine Housing: 0.64 A/R, T25 Inlet, Internal Wastegate Design, and RB26DETT Specific 5 Bolt Outlet
  • Internal Wastegate Actuator: 14PSI

  • APPLICABLE GARRETT PART NUMBERS:
  • 849894-5002S
