V-Band Adapter - GT25/GT28/GT307X-WG Series

Quantity in Basket: None
Code: ATP-FLS-023
Price: $95.00
Shipping Weight: 1.20 pounds

Quantity:


Check this box if you are using this for the journal bearing T25/T28 turbo series 5 bolt outlet

Check this box to upgrade to all stainless ($20 add'l)

Check this box if you are using this for the TD05 turbo series 5 bolt outlet

Check this box for the special version that has a GT 3" V-Band ($20 add'l) *BACK IN STOCK!* (90mm OD flange with 81mm Centering Ring)
V-Band Adapter - GT25/GT28/GT307X-WG Series

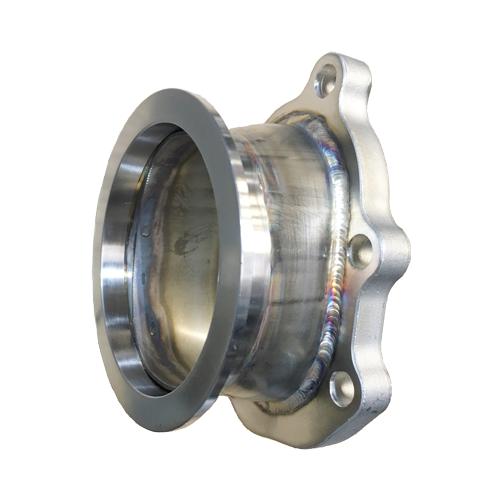

The V-Band Adapter for the GT25/28

High Flowing 3.00" V-Band discharge module is now available for the GT25R, GT28R, GT28RS, GT2871R, GT3071R-WG, GT3076R-WG.

ATP offers a creative and modular unit that converts the discharge side of these GT Turbos to 3.00" VBand for easy connection to any 3.00" V-Band style downpipe.

The Unit Features:

1. CNC Machined Flanges from solids on both ends for max durability.
2. Custom formed stainless transition tube offers max flow with no restrictions.
3. Unit has large opening for both wastegate and turbine discharges.
4. Tig welded unit and allows proper clearance if used with these nuts and studs:
MIA-FST-030 or ATP-FST-031.. .



Related Item(s)
Related Parts:
Code Name Price
ATP-FLS-023B V-Band Adapter (Cast Stainless) for Garrett T25 Turbine Hsg: GT25, GT28/GTX28, GTX29, GT30/GTX30 $95.00
ATP-FLS-012 Flange, Standard 3" V-Band MILD STEEL (3.75" OD flange, Grooved for 3" OD Tube) $15.95
CLC-CLA-013 3" V-Band Clamp - for 3.75" OD Flanges - typically DOWNPIPE SIDE - or General V-band Joint $19.95
MIA-FST-030 8mm (1.25pitch) Stud $1.00
MIA-FST-031 8mm (1.25pitch) Nut, Locking Head $1.00
ATP-FLS-063 Flange, Standard 3" V-Band STAINLESS STEEL (3.75" OD flange, Grooved for 3" OD Tube) $19.95
ATP-GSK-016 Gasket, 5-Bolt for Garrett T25 Flanged GT28 GTX28/2930R-WG Turbine Housings $6.95
