Catalog Home > Turbos & Housings > New Garrett Housings!

Garrett *DIVIDED* V-band Entry Turbine Housing in Ni-Resist For GT30R/GTX30R .61 A/R

Quantity in Basket: None
Code: ATP-HSG-224
Price: $730.84
Shipping Weight: 10.00 pounds

Quantity:

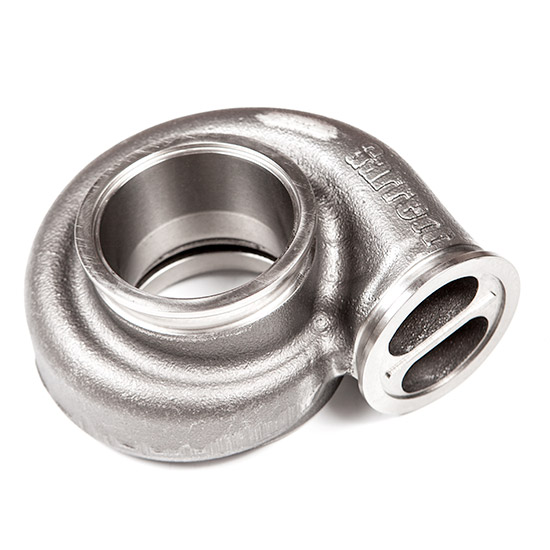

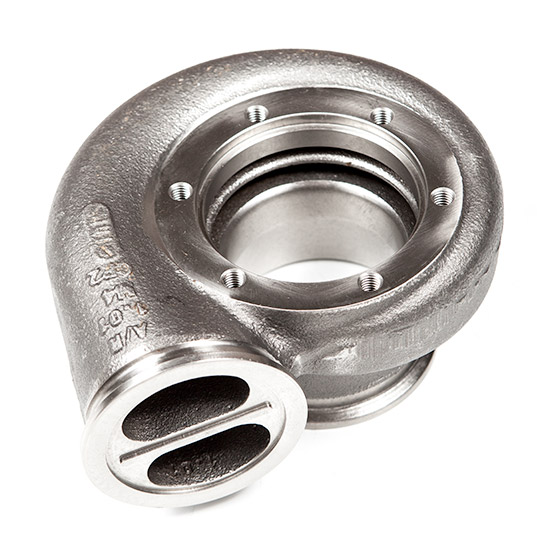

Garrett *DIVIDED* V-band Entry Turbine Housing in Ni-Resist For GT30R/GTX30R .61 A/R

PRODUCT DESCRIPTION:
Garrett divided V-band inlet & outlet turbine housing in Ni-Resist material; for GT30 and GTX30 series turbochargers. The turbine housing is .61 A/R and 3-inch V-Band outlet (81mm centering ring).

The turbine housing includes a turbine inlet clamp and turbine outlet clamp.


PRODUCT CONTENTS:
* (1 unit) Ni-Resist Garrett turbine housing
* (1 unit) V-band clamp for turbine inlet
* (1 unit) V-band clamp for turbine outlet


APPLICATION NOTES:
* Compatible turbine housing divided inlet adapter (product code: ATP-HSG-250)
* Compatible turbine housing outlet flange - select 81mm centering ring (product code: ATP-FLS-105)
* Compatible turbine housing inlet clamp (product code: CLC-CLA-047)
* Compatible turbine housing outlet clamp (product code: CLC-CLA-048)


APPLICABLE GARRETT PART NUMBERS:
* 740902-0024


COMPATIBLE GARRETT TURBO MODELS:
* GT3071R (60mm turbine wheel)
* GT3076R (60mm turbine wheel)
* GT3082R
* GTX3067R
* GTX3071R
* GTX3076R


Related Item(s)
Related Parts:
Code Name Price
ATP-HSG-250 Manifold Side - Weld Adapter Flange For New Series Garrett V-band Twinscroll Turbine Housings $374.00
ATP-FLS-105 Stainless 3" DOWNPIPE SIDE FLANGE w/ protruded lip for Garrett "GT" 3" V-band (3.55" / 90mm OD) $26.00
CLC-CLA-047 Turbine Inlet MANIFOLD CLAMP (Alternate) for TiAL / Garrett V-Band Housing (GT28, GT30, and GT35) $19.95
CLC-CLA-048 CLAMP, V-Band DOWNPIPE SIDE 3" Garrett "GT V-Band" Turbine Housing w/ 90mm OD Flange GTX G25 G30 G35 $22.95
