PRODUCT DESCRIPTION:

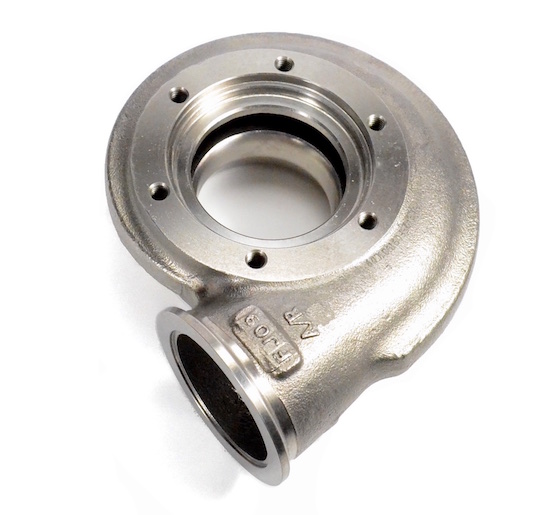

Garrett V-band Entry & Ni-Resist Turbine housing or GTX reverse rotation GTX35 models. The turbine housing is 1.01 A/R and 3 inch V-Band outlet (81mm centering ring).

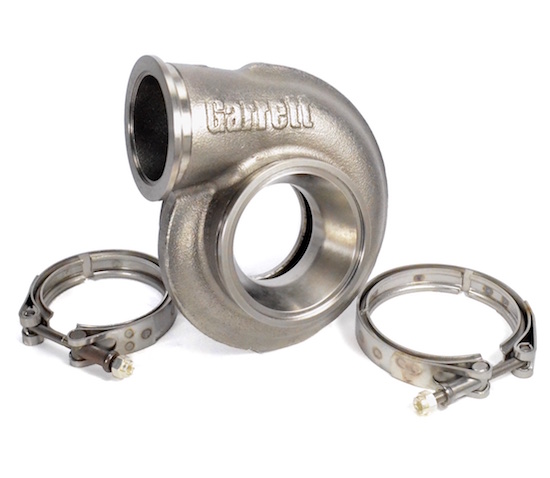

The turbine housing includes a turbine inlet clamp and turbine outlet clamp. Flanges not included.

** Reverse Rotation Fitment Only **


COMPATIBLE GARRETT TURBOCHARGERS:

GEN2-RR GTX3576R (reverse rotation)

GEN2-RR GTX3582R (reverse rotation)

PRODUCT CONTENTS:

(one unit) Ni-Resist Garrett Turbine Housing (reverse rotation)

(one unit) V-Band inlet clamp

(one unit) V-Band outlet clamp

(one unit) CHRA to turbine housing clamp and bolt kit

FLANGES AND CLAMPS:

Compatible turbine housing inlet flange (product code: ATP-FLS-191)

Compatible turbine housing outlet flange (product code: ATP-FLS-246)

Compatible turbine housing inlet clamp (product code: CLC-CLA-047)

Compatible turbine housing outlet clamp (product code: CLC-CLA-048)

APPLICABLE GARRETT PART NUMBERS:

740902-0058
