Catalog Home > Turbos & Housings > Garrett G Series Resource Page > G50 - Garrett G Series

Housing, Turbine, TiAL P/N 008561, V-band inlet/outlet, for G SERIES G50 TURBO, 1.17 A/R

Quantity in Basket: None
Code: ATP-HSG-705
Price: $669.00
Shipping Weight: 15.00 pounds

Quantity:

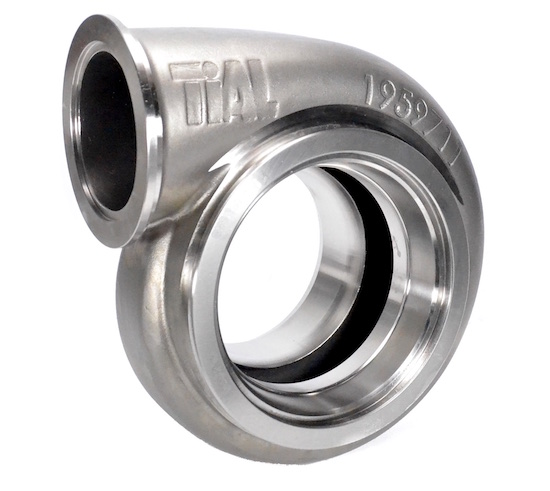

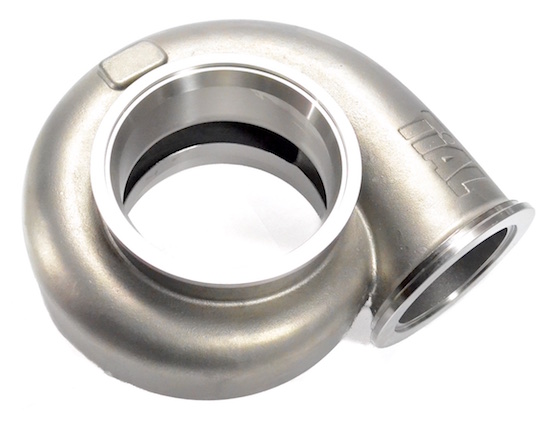

Housing, Turbine, TiAL P/N 008561, V-band inlet/outlet, for G SERIES G50 TURBO, 1.17 A/R

Click to enlarge images


PRODUCT DESCRIPTION:
Housing, Turbine, TiAL P/N 008561, V-band inlet/outlet, for G SERIES G50 TURBO, 1.17 A/R

New offering specifically for the G-SERIES G50!

Note: The Tial G-Series G50 Stainless Turbine housing uses the same inlet and outlet (manifold and downpipe) flanges and clamps as the Tial housings for the GT/GTX42 and GT/GTX45 Series. The centering ring on the downpipe flange does not fit because G50 turbine wheel bore is too large, but the OD fits the same. Please make sure you order flange product code ATP-FLS-446 which has the larger bore and centering ring to fit the G SERIES G50 GTX50 housing properly.

  • V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-095
  • V-Band Inlet Clamp: Product Code:CLC-CLA-027
  • V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-446
  • V-Band Outlet Clamp: Product Code:CLC-CLA-028
  • V-Band Clamp to attach TiAl Housing to Garrett CHRA (or supercore): Product Code: ATP-HSG-320
