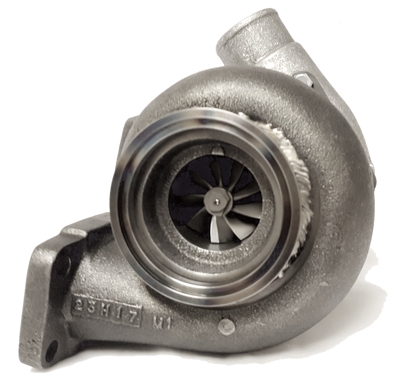

GEN2 - Garrett GTX3582R Turbo w/ Divided 1.06 A/R T3 Turbine Housing (ATP-HSG-079) w/3" VBAND Exit
Click to enlarge images


PRODUCT DESCRIPTION:
Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!

The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.


PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 66mm

Compressor Wheel Exducer: 82mm

Compressor Wheel Trim: 64

Compressor Housing A/R: 0.70, T04S Frame: 4" in / 2.5" out

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84

TURBINE HOUSING OPTIONS:

Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R

ALTERNATIVE TURBINE HOUSING OPTIONS:

T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-046

T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063

T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037

T3 Divided Inlet and 3.0" V-Band Outlet. Available in .82 A/R, 1.06 A/R

TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.03 A/R

Additional turbine housing options available in the Turbine Housing Section. Available here!



COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines

Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)

Oil drain flange: Product Code: ATP-FLA-010

Oil drain gasket: Product Code: GRT-GSK-008

T3 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-068

T3 Divided Inlet Gasket: Product Code:ATP-GSK-015

3" GT V-band Outlet Flange w/81mm protruded lip (for Downpipe): Product Code:ATP-FLS-246

Matching V-Band Outlet Clamp: Product Code:CLC-CLA-048

NOTE: Alternate coolant and oil fittings and flanges are available.



COMPRESSOR & TURBINE MAPS:



APPLICABLE GARRETT PART NUMBERS:

851154-5004S

856801-5079S

856801-5080S

856801-5081S
