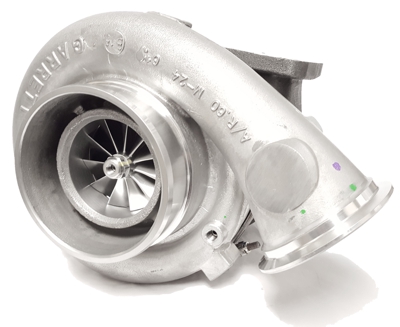

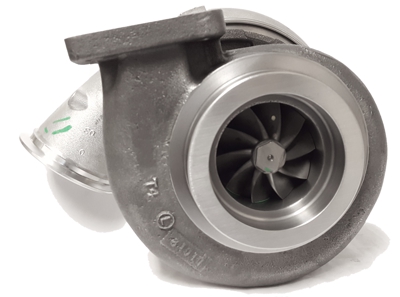

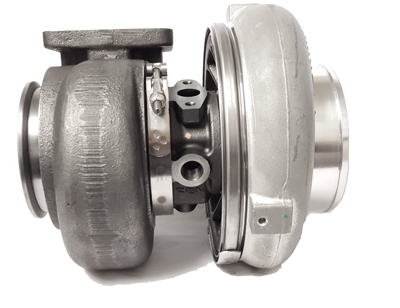

Garrett GTX4202R - 76mm Ball Bearing - 1.44 AR T4 Un-Divided Turbine Housing

Quantity in Basket: None
Code: GRT-TBO-978
Price: $3,995.00
Shipping Weight: 3.00 pounds

Product Description:

Product Specifications:

Compressor Wheel Inducer: 75.8mm
Compressor Wheel Exducer: 102.3mm
Compressor Wheel Trim: 55
Compressor Housing: 60 A/R, GT42R Frame, 5" Inlet, V-Band 4.5" OD (3.5" ID) Outlet
Turbine Wheel Inducer: 82mm
Turbine Wheel Exducer: 75.1mm
Turbine Wheel Trim: 84 trim
Turbine Housing: 1.44 A/R, T4 Un-Divided Inlet, 4" V-Band Outlet

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
Oil feed flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
Oil feed gasket: Product Code: GRT-GSK-011
Oil drain flange: Product Code: ATP-FLA-009
Oil drain gasket: Product Code: GRT-GSK-007
8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

Compressor Housing Outlet Flange & Clamp Set: Product Code:ATP-FLS-055

T4 Un-Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-200
T4 Un-Divided Inlet Gasket: Product Code:GRT-GSK-006
4" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-352
4" V-Band Clamp: Product Code:CLC-CLA-014

Compressor & Turbine Maps:

Applicable Garrett Part Numbers:

800269-5002S
451888-0044
