PRODUCT DESCRIPTION:

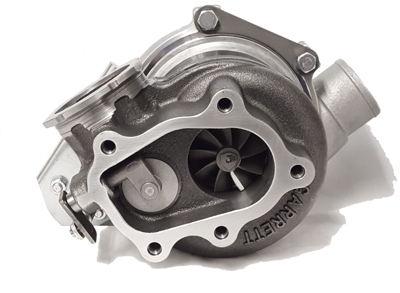

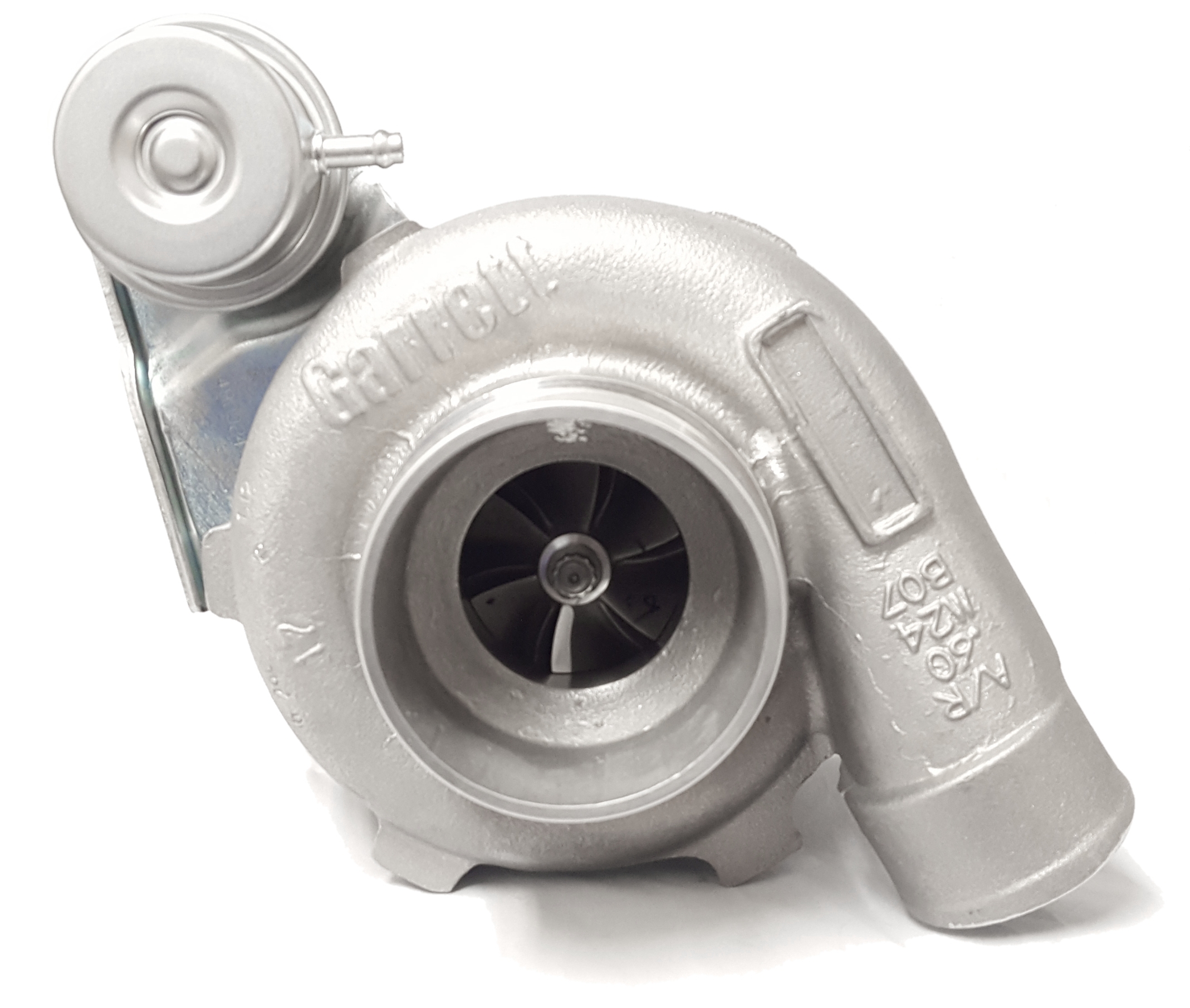

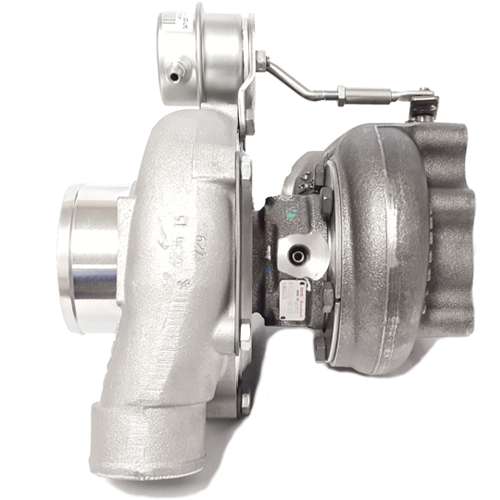

Garrett GT2860RS Turbo with .86 A/R Int W/G VB25 Entry Garrett Turbine Housing.

PRODUCT FEATURES:

Genuine Garrett GT Aero compressor wheel

Genuine Garrett GT Inconel turbine wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 47.2mm

Compressor Wheel Exducer: 60.1mm

Compressor Wheel Trim: 62

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 53.9mm

Turbine Wheel Exducer: 47mm

Turbine Wheel Trim: 76

COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines

Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)

Oil drain flange: Product Code: ATP-FLA-010

Oil drain gasket: Product Code: GRT-GSK-008

V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093

V-Band Inlet Clamp: Product Code:CLC-CLA-025

5 Bolt "GT28 Style" Outlet Flange (for Downpipe): Product Code:ATP-FLS-088

5 Bolt "GT28 Style" Outlet Gasket: Product Code:ATP-GSK-016

Wastegate Actuator "GT28RS Style" 12 to 14PSI: Product Code:ATP-WGT-025

Actuator Bracket: Product Code:ATP-WGT-009

Actuator Rod End Clip: Product Code:ATP-WGT-035

NOTE: Alternate coolant and oil fittings and flanges are available.

COMPRESSOR & TURBINE MAPS:



APPLICABLE GARRETT PART NUMBERS:

835998-0007
