Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > GT Turbos With Special Turbine Housings > GT2860RS With Special Housings

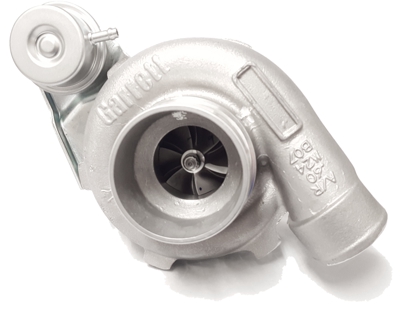

Turbo Garrett GT2860RS w/ .64 A/R VB25 Entry Garrett Int W/G w/14 psi actuator and 3" V-band Module

Quantity in Basket: None
Code: GRT-TBO-B51
Price: $1,099.00
Shipping Weight: 3.00 pounds

Quantity:


Optional: Low Pressure Actuator (6-7 psi)
Turbo Garrett GT2860RS w/ .64 A/R VB25 Entry Garrett Int W/G  w/14 psi actuator and 3



PRODUCT DESCRIPTION:
The dual ball bearing Garrett GT2860RS Turbo with .64 A/R Internal W/G VB25 Entry (TiAL Compatible) Modified Garrett Turbine Housing (T25 modified to V-Band). 3" Stainless V-Band discharge module included, along with Wastegate Actuator and Bracket, as shown.

If 350HP Level is what you're seeking from your turbo setup with the best possible boost response, the GT2860RS is the turbo for the job. Many "bigger" turbo setups have been outrun by the over-achieving GT2860RS. It's probably the most boost responsive turbo that is capable of making 350HP.

PRODUCT FEATURES:
  • Genuine Garrett GT Aero compressor wheel
  • Genuine Garrett GT Inconel turbine wheel
  • Dual ball bearing CHRA rotating assembly


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 47.2mm
  • Compressor Wheel Exducer: 60.1mm
  • Compressor Wheel Trim: 62
  • Compressor Housing A/R: 0.60, T04B Frame with 3" in/2" out
  • Turbine Wheel Inducer: 53.9mm
  • Turbine Wheel Exducer: 47mm
  • Turbine Wheel Trim: 76


  • COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008

  • V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
  • V-Band Inlet Clamp: Product Code:CLC-CLA-025
  • 3" Stainless V-Band Flange (for Downpipe): Product Code:ATP-FLS-063
  • 3" Stainless V-Band Clamp (for downpipe): Product Code:CLC-CLA-013

  • Alternate Flange and Clamps:
  • Alternate V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-185
  • Alternate V-Band Inlet Clamp: Product Code:CLC-CLA-047


  • COMPRESSOR & TURBINE MAPS:



    APPLICABLE GARRETT PART NUMBERS:
  • 835998-0007


  • Related Item(s)
    Related Parts:
    Code Name Price
    ATP-OIL-021 -4 size Oil inlet fitting for GT28 GTX28 GT30 GTX30 GT35R with built-in .035" RESTRICTOR $12.00
    ATP-FLA-010 Aluminum - Oil Drain ( return ) Flange (GT25, GT28, GTX28, GTX29, GT30, GTX30, GT35, GTX35, T25, T28 $13.95
    GRT-GSK-008 Oil Drain ( Return ) Flange Gasket - GT GTX Series GT25 through GTX35 $3.00
