Turbos & Housings
>
Garrett GTX Gen2
>
GEN2 GTX5533R Turbos

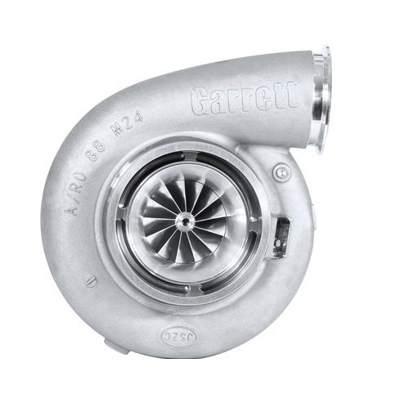

Gen2 GTX5533R 91mm Turbo with Garrett 1.40 A/R T6 Undivided Turbine Housing
Quantity in Basket:
None
Code:
GRT-TBO-H26
Price:
$5,495.00
Shipping Weight:
3.00 pounds
Product Description:
Garrett GEN2 GTX5533R (91mm) also known as the GEN2 "GTX55-98", dual ball bearing turbocharger with a 1.40 A/R T6 undivided inlet and v-band outlet turbine housing.
Product Features:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Machined speed sensor port
Light weight billet backplate
Oil cooled bearing housing (no water ports)
Dual ball bearing CHRA rotating assembly
Product Specifications:
Compressor Wheel Inducer: 91mm
Compressor Wheel Exducer: 133mm
Compressor Wheel Trim: 54
Turbine Wheel Inducer: 112mm
Turbine Wheel Exducer: 102mm
Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

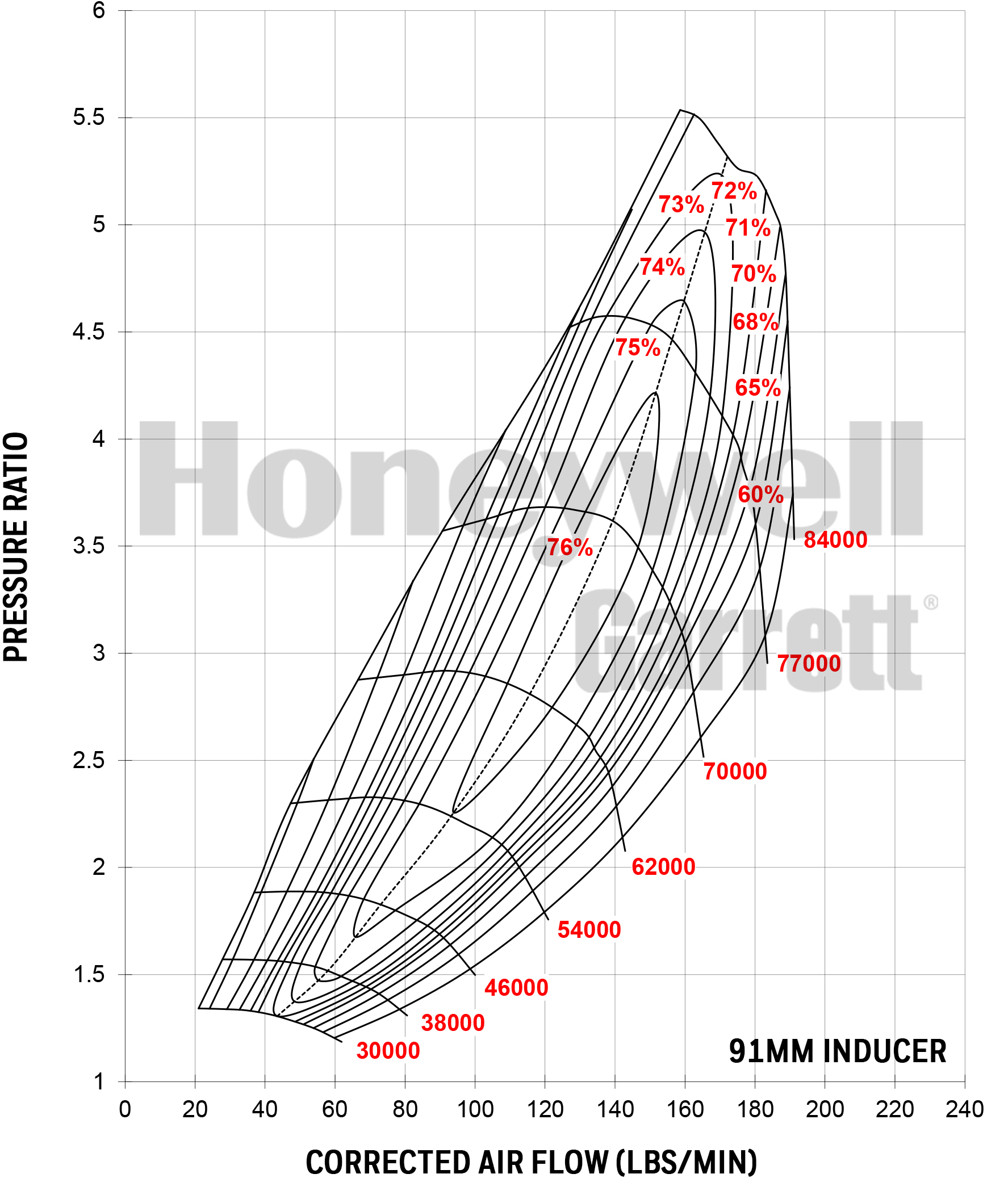

Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
