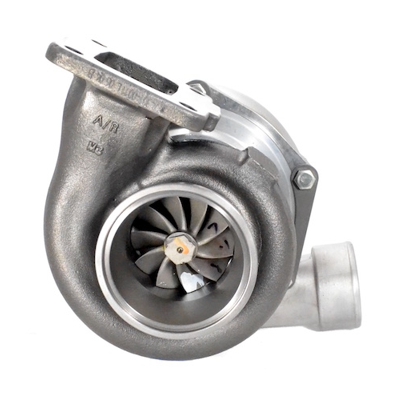

Garrett GT3076R 4" in / 2" turbo w/ 1.06 A/R T4 Tbn Hsg "GT VBAND 3" conical exit with 81mm lip

Quantity in Basket: None
Code: GRT-TBO-H33
Price: $1,695.00
Shipping Weight: 3.00 pounds

Garrett GT3076R 4

Product Description:

Garrett GT3076R 4" in/ 2" out turbo with 1.06 A/R T4 "GT VBAND 3" conical 81mm lip exit turbine housing. 525+HP potential flow. Product Features:

Genuine Garrett GT Aero compressor wheel
Genuine Garrett GT Inconel turbine wheel
Dual ball bearing CHRA rotating assembly

Product Specifications:

Compressor Wheel Inducer: 57mm
Compressor Wheel Exducer: 76mm
Compressor Wheel Trim: 56
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008

T4 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-200
T4 Inlet Gasket: Product Code:GRT-GSK-006
GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
V-Band Clamp: Product Code:CLC-CLA-048

Compressor & Turbine Maps:

Applicable Garrett Part Numbers:

836028-5003S
700382-5012
