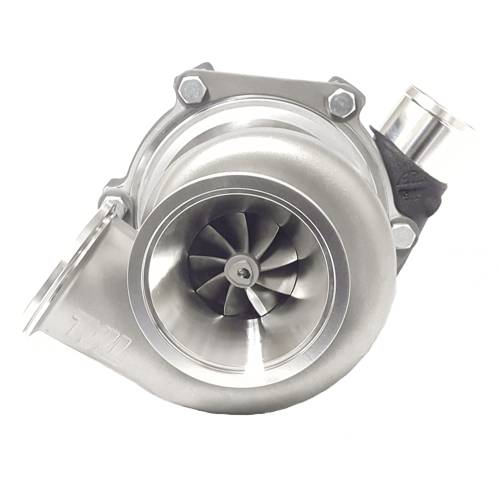

Black, Gen2 - Garrett GTX2860R Turbo with .52 A/R Stainless Tial V-band Turbine Housing

Quantity in Basket: None
Code: GRT-TBO-J84
Price: $1,995.00
Shipping Weight: 8.00 pounds

Product Description:

Black Garrett GEN2 GTX2860R dual ball bearing turbocharger, including a TiAL Stainless Steel .52 A/R, V-Band Inlet and V-Band Outlet Turbine Housing. Advanced GEN2 billet compressor wheel capable of 475HP! Product Features:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly

Product Specifications:

Compressor Wheel Inducer: 46mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 58
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 47mm
Turbine Wheel Trim: 76
Turbine Housing A/R: .52

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008

V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
V-Band Inlet Clamp: Product Code:CLC-CLA-025
V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-094
V-Band Outlet Clamp: Product Code:CLC-CLA-026

Compressor & Turbine Maps:

Garrett Part Number:

849894-5001S
