Turbocharger, Garrett Gen2 GTX4720R - 88mm with a TiAL 1.45 A/R V-band Turbine Housing

Quantity in Basket: None
Code: GRT-TBO-K45
Price: $4,795.00
Shipping Weight: 3.00 pounds

Quantity:

Turbocharger, Garrett Gen2 GTX4720R - 88mm with a TiAL 1.45 A/R V-band Turbine Housing



Product Description:

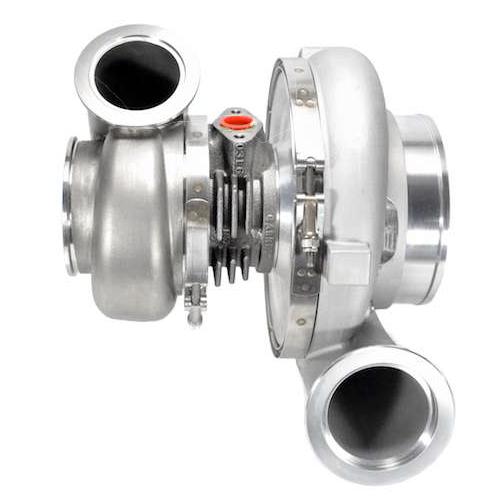

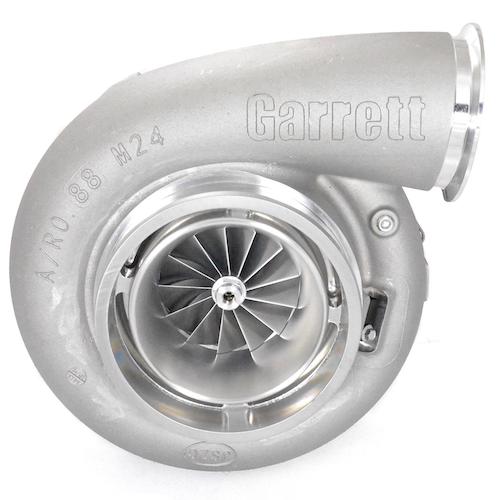

    Garrett Gen2 GTX4720R-88mm dual ball bearing turbocharger with a TiAL 1.45 A/R stainless turbine housing.

    The most responsive configuration for Garrett's high flow Gen II GTX 88mm compressor wheel. The turbo for race classes limited to a 88mm compressor wheel inducer and/or GT/GTX47 series turbo.
Product Features:
  • Gen II compressor wheel aerodynamics
  • 9%-15% increased flow
  • Larger .88 A/R compressor housing volute
  • 120mm comp exducer ( + 2mm) with 30% lower inertia
  • Compatible with GT and GTX turbine housings
Product Specifications:
  • Compressor Wheel Inducer: 88mm
  • Compressor Wheel Exducer: 120mm
  • Compressor Housing: .88 A/R, 6 Inch Inlet (cast ported shroud), and 3.5" V-Band Outlet
  • Compressor Wheel Trim: 41
  • Turbine Wheel Inducer: 93mm
  • Turbine Wheel Exducer: 84mm
  • Turbine Wheel Trim: 82
Oil Fittings, Flanges, and Components Solutions: Turbine Map: Garrett Part Numbers:
  • 851285-5015S
