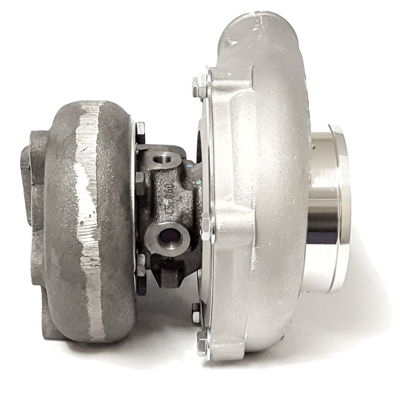

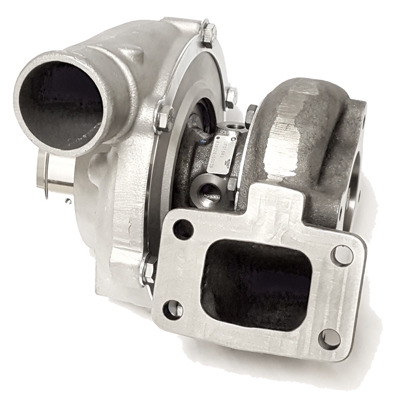

Turbocharger, Gen2 GTX3076R DBB, w/ .82 A/R T3 5 bolt (ford style) exit

Quantity in Basket: None
Code: GRT-TBO-L27
Price: $2,415.34
Shipping Weight: 8.00 pounds

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3076R dual ball bearing turbocharger with a .82 A/R T3 5 bolt (Ford Style) exit turbine housing. Advanced GEN2 billet compressor wheel capable of 750HP! PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 58 mm
Compressor Wheel Exducer: 76 mm
Compressor Wheel Trim: 58
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 60 mm
Turbine Wheel Exducer: 55 mm
Turbine Wheel Trim: 84

COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008

T3 Inlet Weld Flange (stainless): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005

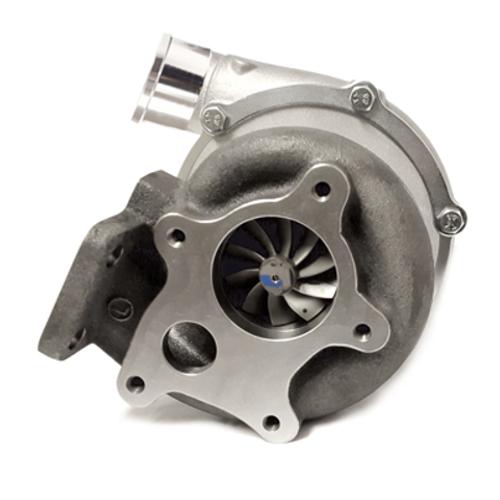

T3 5 Bolt (Ford Style) Discharge flange (stainless): Product Code: ATP-FLS-036 (ATP-FLS-035 - mild steel)
Gasket for T3 5 Bolt (Ford Style) Turbine Outlet Flange (Externally Gated): Product Code: ATP-GSK-019

COMPRESSOR & TURBINE MAPS:

APPLICABLE GARRETT PART NUMBERS:

851154-5001S
