Turbo Garrett GT2871-52T Anti-Surge .63 A/R T31 "narrow" 4 bolt Turbine Hsg

07.08.25 GARRETT Newly Released: Garrett Vent Blow-Off Valves and Wastegates... CLICK HERE... 12.02.25 Recent product uploads including G-XRace Turbos...and other new turbosCLICK HERE...
Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > GT2871R With Special Housings

Turbo Garrett GT2871-52T Anti-Surge .63 A/R T31 "narrow" 4 bolt Turbine Hsg - 400+ HP-LIMITED STOCK!

Quantity in Basket: None
Code: GRT-TBO-N77
Price: $1,099.00
Shipping Weight: 5.00 pounds

Product Description:

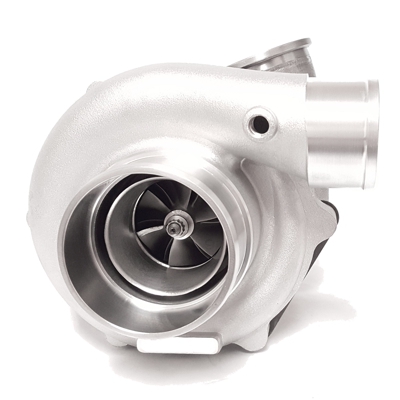

Garrett GT2871R-52T ball bearing turbocharger with Anti-Surge Compressor housing and .63 A/R T31 "narrow" 4 bolt turbine housing. +400HP potential flow. The 52T 71mm compressor flows a little less at peak than the standard 56T 71mm compressor but the 52T spools quicker. Product Features:

Genuine Garrett GT Aero compressor wheel
Genuine Garrett GT Inconel turbine wheel
Dual ball bearing CHRA rotating assembly

Product Specifications:

Compressor Wheel Inducer: 51.2mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 52
Compressor Housing A/R: 0.60, T04B Frame (GT28 size) with 3" inlet and 2" outlet
Turbine Wheel Inducer: 53.9mm
Turbine Wheel Exducer: 47mm
Turbine Wheel Trim: 76

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008

T3 Inlet Weld Flange (stainless): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
4 Bolt Outlet Flange (for Downpipe): Product Code:ATP-FLS-084
4 Bolt Outlet Gasket: Product Code:ATP-GSK-012

Applicable Garrett Part Numbers:

836026-5006S
836026-5011S
836026-5012S
