Garrett G50-1700-80MM/109 SUPERCORE ONLY - P/N: 880547-5027S w/ Compressor Housing w/ V-Band Outlet

Quantity in Basket: None
Code: GRT-TBO-R45
Price: $4,304.95
Shipping Weight: 10.00 pounds

Quantity:

Garrett G50-1700-80MM/109 SUPERCORE ONLY - P/N: 880547-5027S w/ Compressor Housing w/ V-Band Outlet
Product Description
    Garrett G50-1700-80MM/109 SUPERCORE ONLY - P/N: 880547-5027S w/ Compressor Housing w/ V-Band Outlet

    Garrett G50 turbochargers are engineered for extreme horsepower applications. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G50 from its predecessor.

    Turbine Stage: The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 23% more (Compared to GTX Gen II, see graph below). G50 is offered with four stainless steel T6 open turbine housings in .96 A/R, 1.08 A/R, 1.23 A/R and 1.40 A/R.

    Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction

    Spool: Up to +12% (estimated by flow, efficiency, and inertia)

    Center Housing: One-piece aluminum center housing reduces supercore weight. The center housing is air Cooled and retains the oil inlet and outlet specifications from previous GTX designs.

    Compressor Stage: Garrett G50 compressor stages are offered in
  • 80mm | 109mm comp exducer | 88mm comp inducer | 120mm comp exducer with their own horsepower ratings indicated in the model name.

Features:
  • Supports nearly 1900 horsepower with amazing boost response depending on your inducer wheel choice
  • 80mm | 109mm comp exducer | 88mm comp inducer | 120mm comp exducer
  • Spool: up to +12% (estimated by flow, efficiency, and inertia)
  • 23% more turbine flow (compared to GTX) see graph below
  • One-piece aluminum center housing
  • Outline interchangeable with GTX Gen II turbos

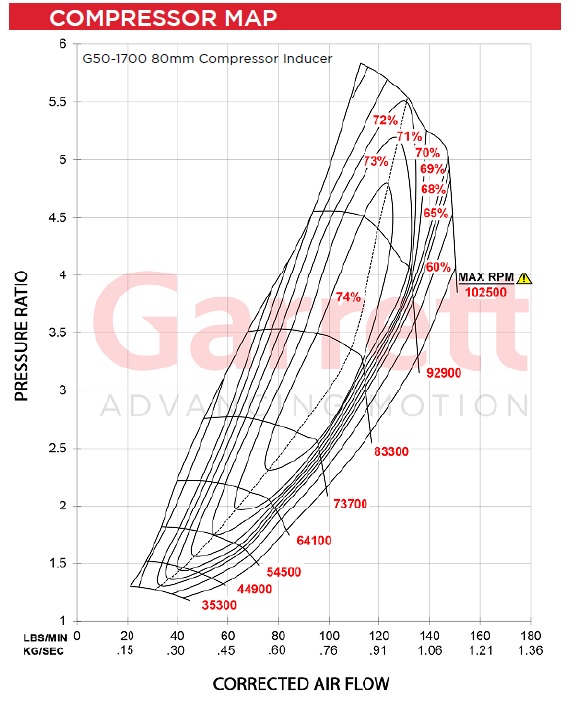

Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: G50 Models Comparison Chart: Garrett Part Numbers:
  • 880547-5027S



Download PDF


Related Item(s)
Related Parts:
Code Name Price
GRT-TBO-R55 Garrett Turbine housing Kit, G Series G50, .96 A/R, T6 Open entry, 5” v-band exit, P/N: 761208-0079 $1,203.95
GRT-TBO-R56 Garrett Turbine housing Kit, G Series G50, 1.08 A/R, T6 Open entry, 5” v-band exit, P/N: 761208-0080 $1,203.95
GRT-TBO-R57 Garrett Turbine housing Kit, G Series G50, 1.23 A/R, T6 Open entry, 5” v-band exit, P/N: 761208-0081 $1,223.95
GRT-TBO-R58 Garrett Turbine housing Kit, G Series G50, 1.39 A/R, T6 Open entry, 5” v-band exit, P/N: 761208-0082 $1,223.95
