Garrett Supercore G-XRace GXR45-67 - 67mm GXRace, 1475HP Capable, PN: 934173-5003S

Quantity in Basket: None
Code: GRT-TBO-S33
Price: $3,389.95
Shipping Weight: 10.00 pounds

Garrett Supercore G-XRace GXR45-67 - 67mm GXRace, 1475HP Capable, PN: 934173-5003S

Product Description:

Product Features:

XBoost Techology increases power and performance
+29% compressor flow (GXR45-67 compared to G45-1125)
+11% compressor flow (GXR45-73 compared to G45-1350)
Enhanced pressure ratio capability and higher boost pressure
Increased efficiency at high flow rates
Lower intake temperature
Lightweight aluminum backplate
Twin-scroll T4 and V-band turbine inlet flanges available to meet the needs of racers with different engines and manifold designs

Product Specifications:

Compressor Wheel Inducer: 67.9mm
Compressor Wheel Exducer: 102mm
Compressor Wheel Trim: 44
Compressor Housing A/R: 0.85
Turbine Wheel Inducer: 89mm
Turbine Wheel Exducer: 82mm
Turbine Wheel Trim: 84

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed flange (-4 AN with built-in Restrictor): ATP-FLA-040
Oil feed gasket: GRT-GSK-011
Oil drain flange: ATP-FLA-009 (Other oil drain flange options)
Oil drain gasket: GRT-GSK-007

V-Band Compressor Outlet Flange/Clamp Set: ATP-FLS-055
T4 Turbine Inlet Flange, Divided, Stainless: ATP-FLS-057 (Mild steel option)
Gasket, T4 (T04) Turbine Inlet - DIVIDED: ATP-GSK-014
V-Band Outlet Flange (for Downpipe): ATP-FLS-378
V-Band Outlet Clamp: CLC-CLA-294

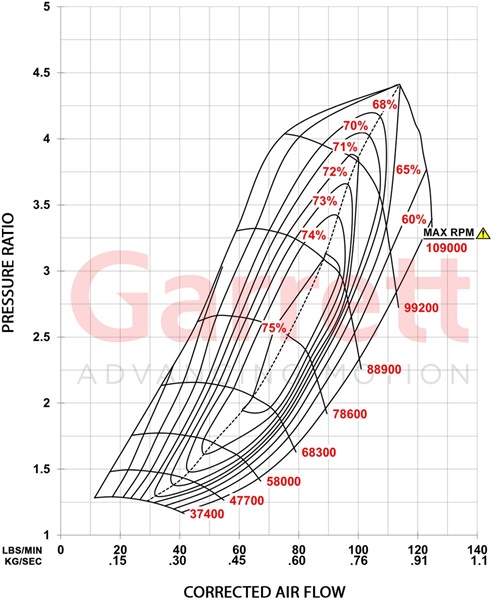

Compressor Map:

Garrett Part Numbers:

934173-5003S

Download GXRace Flyer PDF
