| More Usefel Turbo Components:
ATP builds some
useful Turbo Components for Installation

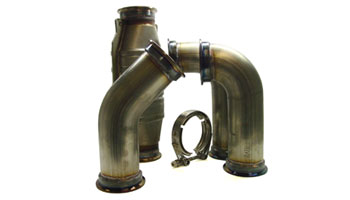

Modular Weld-less bends and Exhaust
Components in 3.00" Stainless
Attention Fabrication and DIY
turbo customers!! You can now quickly assemble your turbo down-pipe
and other exhaust components with these TIG welded V-Band modules
to build professional looking high flowing turbo exhaust systems.
All mandrel bent modules are constructed from 304 Grade stainless
steel and flanges are precision CNC machined from billet mild steel
for added durability. Each section comes supplied with a 3.00"
V-Band Clamp on one end. 1D bends (3.00" Centerline Radius
on 3.00" tube) provide the tight radii required for most turbo
packaging applications. Several configurations of leg lengths are
available for total flexibility.
Modular V-Band
Pipe - 3.00" 45 Degree Bend - 45
Degree Stainless mandrel bent module with V-band flanges
on both ends. 4" Legs, 3" Centerline Radius. 1
V-band clamp included.
|
|
Modular V-Band
Pipe - 3.00" 90 Degree (Short Leg) - 90
Degree Stainless mandrel bent module with V-band flanges
on both ends. 0" Leg and 6" leg, 3" Centerline
Radius. 1 V-band clamp included.
|
Modular V-Band
Pipe - 3.00" 90 Degree (Long Leg) - 90
Degree Stainless mandrel bent module with V-band flanges
on both ends. 2" Leg and 6" leg, 3" Centerline
Radius. 1 V-band clamp included.
|
|
Modular V-Band
- 3.00" High Flow Catalytic Converter - High
Flow 3" Stainless cat assembly with 3" V-band
TIG welded to both ends. Adapts and bolts up easily to all
other mandrel bent elbow modules.
|
|
