Dyno Data

Vehicle Details

Make: Toyoto
Model: Supra
Year: 1994
Induction Model: Garrett GT42
Cooling Detail: Front Mounted Intercooler
Old "T" Wheel Horsepower/Torque: 583/505 RWHP/Torque
New "GT" Wheel Horsepower/Torque: 730/639 RWHP/Torque

ATP implements the Garrett GT42 on the MKIV Toyota Supra engine!
Another example of modern "GT" aerodynamics blowing away old "T" technology!

Fuel:
-Dual In-tank pumps
-Dual -6 AN fuel lines
-Aftermarket Dual Feed Fuel Rail
-Adjustable 1:1 Aeromotive Fuel Pressure Regulator,
-750cc injector
-Stock ECU w/ VPC & GCC Piggyback.

Implementation:
Old "T" Turbo: T72 Compressor, .70 A/R Turbine housing
New "GT" Turbo: GT42 Compressor-94mm, 1.06 A/R Turbine housing

Application Notes:
On the T72, it is common practice to run a smaller A/R such as .70 in attempt to keep this large turbo "streetable". Many T72 users may cringe at the thought of running an A/R larger than 1.00 on a turbo for a street application. Amazingly, the much more HP capable GT42, even with its larger wheels and much larger 1.06 A/R, is capable of spooling up just as well as the smaller .70 A/R T72 in the low RPM while far exceeding its peak HP potential, thanks to modern aerodynamics and better turbine efficiency. The technology found in the wheel combinations used in the GT series turbocharger is decades ahead of the obsolete T turbochargers. This application is another example of how old turbo/wheel/A/R sizing habits can be overcome with new technology!

Look for additional exciting test results from the Ball Bearing version of the GT42, called the GT42-R and the 1000 HP called the GT42-RS!

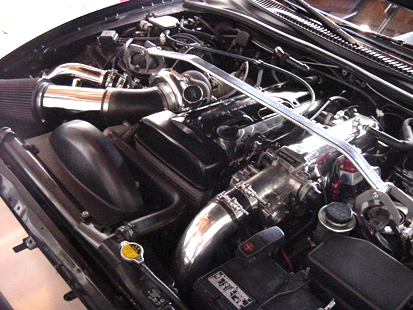

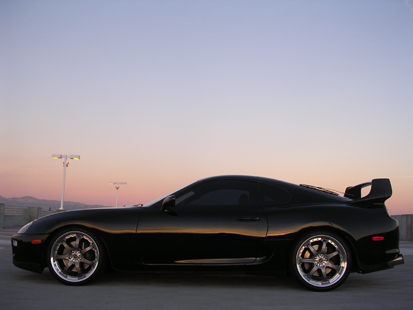

Vehicle Pictures

Click for enlarged pictures

Vehicle Dyno

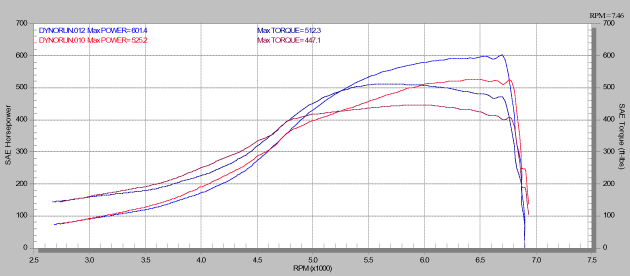

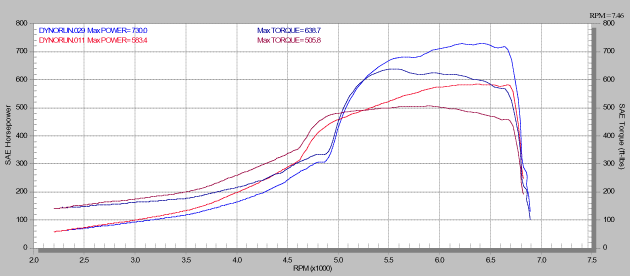

Low Boost (18psi) High Boost (24psi)

Click to enlarge picture
