-4 size Oil inlet fitting for GT28 GTX28 GT30 GTX30 GT35R G25 G30 G35 w/ built-in .035" RESTRICTOR

Quantity in Basket: None
Code: ATP-OIL-021
Price: $12.00
Shipping Weight: 0.10 pounds

Quantity:

-4 size Oil inlet fitting for GT28 GTX28 GT30 GTX30 GT35R G25 G30 G35 w/ built-in .035

CLICK HERE for more restrictor options



Product Description:

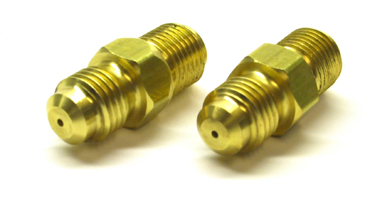

    -4 (-4AN) Size oil inlet restrictor fitting (0.035" orifice / hole size) for Garrett GT and GTX Ball Bearing Turbochargers. Output is -4AN male flare. High durability and reusable Stainless Steel material.

    Use with any -4AN oil feed lines with a -4AN female hose end!

    Fits Garrett GT25R, GT28R, GT30R, GT35R, GTX28R, GTX29R, GTX30R, and GTX35R series models.

    Please Note: NEVER use thread sealant with this fitting. The fitting engages with the mating part and creates a "compression" seal once installed. Any type of liquid or thread sealant used will run the risk of plugging up the oil feed port causing oil starvation and failure of the turbo..
PLEASE NOTE:
