GEN2 Reverse Rotation - Garrett GTX3576R
Quantity in Basket: None
Code: GRT-TBO-570
Price: $2,404.64
Shipping Weight: 22.00 pounds
Quantity:
SELECT Turbine Housing:
GEN2 Reverse Rotation - Garrett GTX3576R


Click to enlarge images



PRODUCT DESCRIPTION:

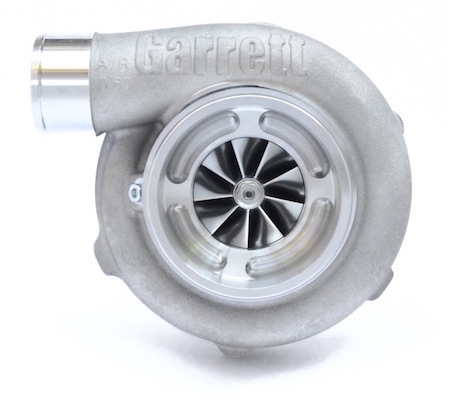

Garrett GEN2 Reverse Rotation GTX3576R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 750HP!

The Garrett reverse rotation series spins counterclockwise and offers new housing layout options for applications where a standard turbocharger (spins clockwise) does not provide sufficient clearance. Additionally upgrading an OEM counterclockwise spinning turbo has never been easier with the Garrett GEN2 GTX Reverse Rotation series!


PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
  • Reverse Rotation CHRA rotating assembly (spins counterclockwise)
  • Potential upgrade turbo solution when standard rotation turbo exceeds space limitations



  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84



  • TURBINE HOUSING OPTIONS:
  • Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R




  • COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
  • Coolant (water) banjo kit: Product Code: ATP-FTG-003
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021) OR -4 AN unrestricted (Product Code: ATP-FTG-029)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

  • NOTE: Alternate coolant and oil fittings and flanges are available.



    COMPRESSOR & TURBINE MAPS:



    APPLICABLE GARRETT PART NUMBERS:
  • 844626-5003S
  • 856803-5001S
  • 856803-5002S
  • 856803-5003S
  •
