Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > GT3788R With Special Housings

V-band Entry Undivided Turbine HSG, GT3788R, A/R .89, .99, 1.11, 3" vb outlet

Quantity in Basket: None
Code: ATP-HSG-400
Price: $431.37
Shipping Weight: 14.00 pounds

Quantity:

Turbo housing a/r:
.89 a/r
.99 a/r
1.11 a/r
V-band Entry Undivided Turbine HSG,  GT3788R, A/R .89, .99, 1.11, 3
Product Description:

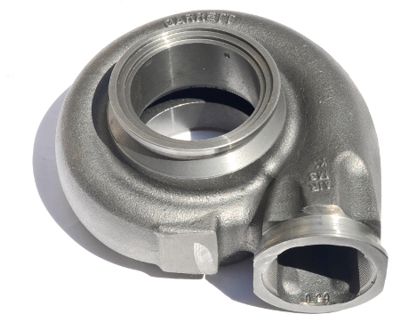

    Garrett cast v-band entry undivided turbine housing.
    • Compatible with GT3788R
    • A/R: .89, .99, 1.11
    • V-band undivided inlet (machined from T3 Inlet, comparible to GT30 v-band inlet)
    • 3" v-band discharge
Applicable Garrett P/N's:
  • 773627-X


Related Item(s)
Related Parts:
Code Name Price
ATP-FLS-191 ATP Stainless MANIFOLD SIDE FLANGE For Garrett UNDIVIDED V-Band Housing GTX29 GT30/GTX30 GT35/GTX35 $35.00
CLC-CLA-265 GARRETT V-band CLAMP, Turbine inlet (MANIFOLD SIDE) V-Band Housing GT/GTX30 GT/GTX35/G25/G30/G35 $39.95
ATP-FLS-246 DOWNPIPE FLANGE, Stainless 3" GT V-Band w/ 81mm protruded lip, Garrett Housings with 90mm (3.55”) OD $26.00
CLC-CLA-048 CLAMP, V-Band DOWNPIPE SIDE 3" Garrett "GT V-Band" Turbine Housing w/ 90mm OD Flange GTX G25 G30 G35 $22.95
ATP-FST-039 Turbine Housing Clamps and Bolt Kit, Hardware to fasten CHRA to Turbine Housing $19.95
