PRODUCT DESCRIPTION:

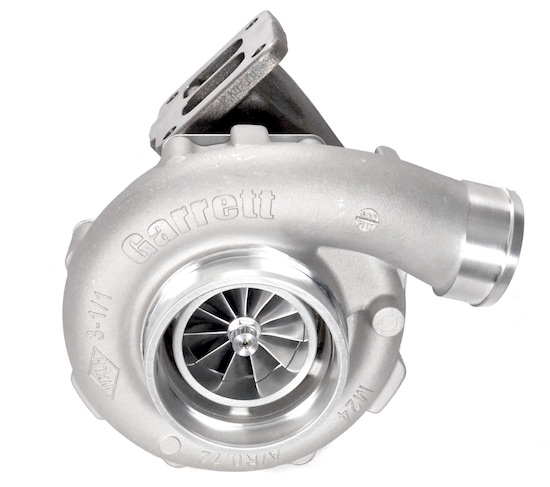

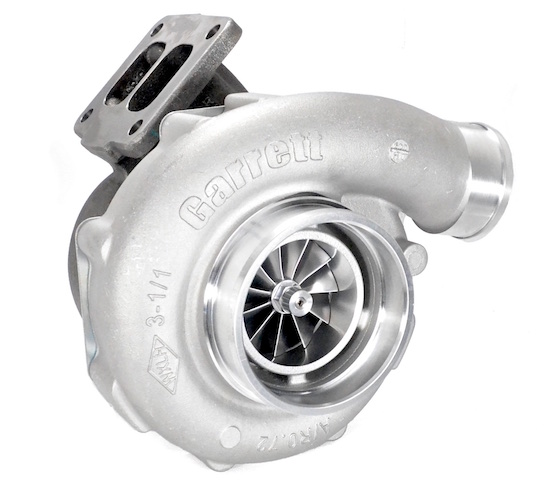

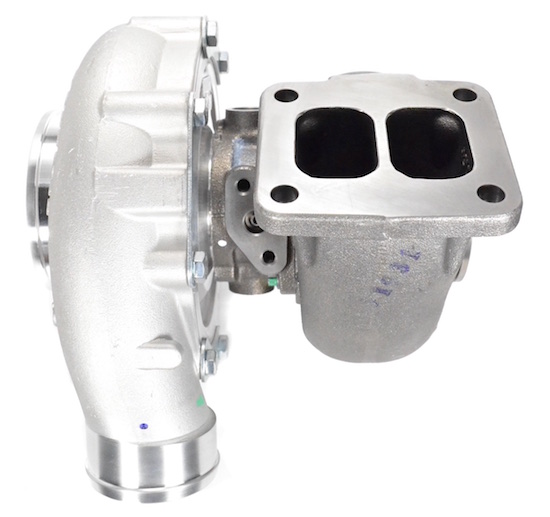

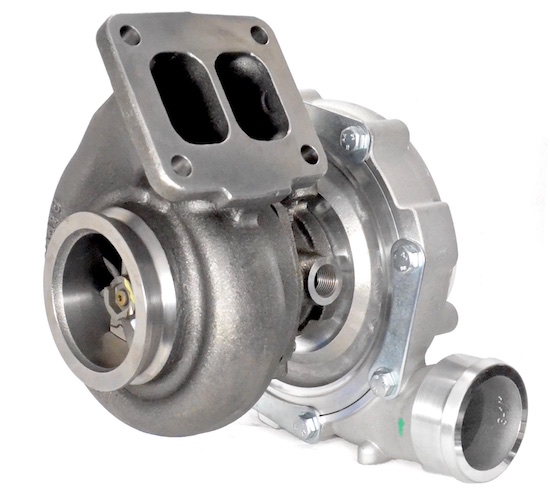

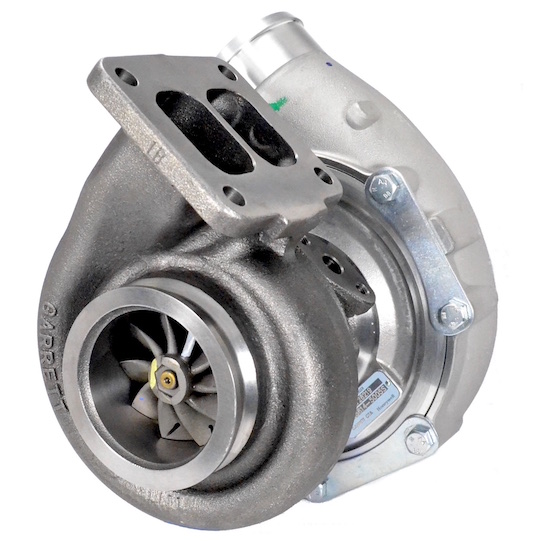

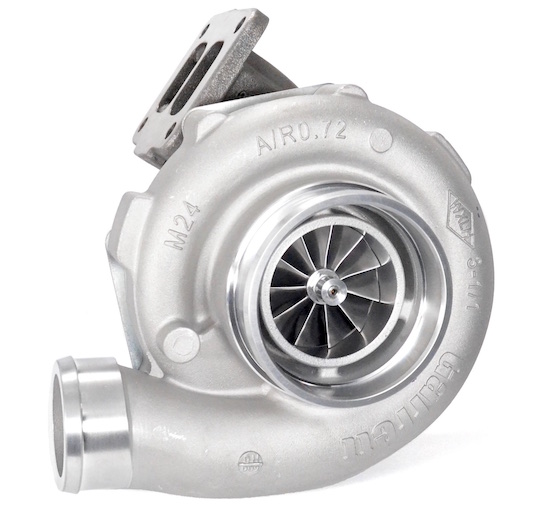

Garrett GTX4088R dual ball bearing turbocharger with a 1.19 A/R T4 Divided (Twin-Scroll) Inlet and 3" V-Band Outlet. 850HP+ potential flow.

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 65.0mm

Compressor Wheel Exducer: 88.4mm

Compressor Wheel Trim: 54

Compressor Housing: .72 A/R T04H Frame with a 4" Inlet (Ported shroud anti surge) and 2.5" Outlet

Turbine Wheel Inducer: 77.0mm

Turbine Wheel Exducer: 68.0mm

Turbine Wheel Trim: 78

Turbine Housing: 1.19 A/R T4 Divided Inlet (Twin-scroll) and 3" V-Band Outlet

COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines

Oil feed Flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)

Oil Feed Gasket: Product Code: GRT-GSK-011

Oil drain flange: Product Code: ATP-FLA-009

Oil drain gasket: Product Code: GRT-GSK-007

8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

T4 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-057

T4 Divided Inlet Gasket: Product Code:GRT-GSK-014

Exhaust/Turbo Manifold Flange/Clamp set (for Downpipe): Product Code:CLC-CLA-274

NOTE: Alternate coolant and oil fittings and flanges are available.

COMPRESSOR & TURBINE MAPS:



APPLICABLE GARRETT PART NUMBERS:

* 825614-5002S

* 825614-5004S

* 825614-5005S

* 803614-2

* 803614-4

* 803614-5

* 751450-0021

* 751450-21

* 751450-0023

* 751450-23
