Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > Garrett GT4094R

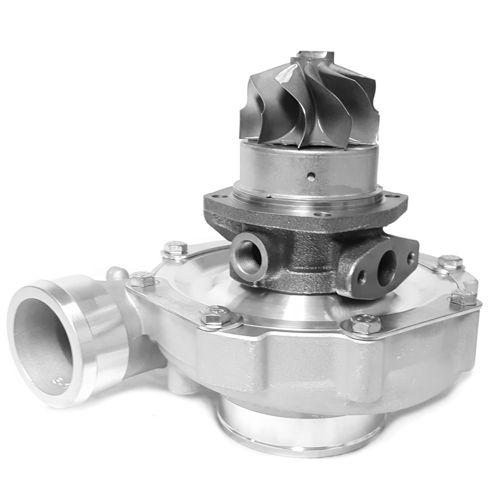

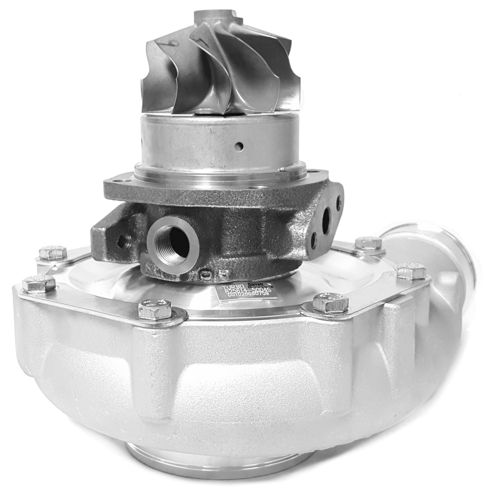

Supercore, Garrett GT4094R - Turbo W/O Turbine Hsg

Quantity in Basket: None
Code: GRT-TBO-L15
Price: $1,395.00
Shipping Weight: 3.00 pounds

Supercore, Garrett GT4094R - Turbo W/O Turbine Hsg

PRODUCT DESCRIPTION:

Garrett - GT4094R (GT40R) Supercore (Turbo W/O Turbine Hsg). PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 67.8mm
Compressor Wheel Exducer: 94.0mm
Compressor Wheel Trim: 52
Turbine Wheel Inducer: 77.0mm
Turbine Wheel Trim: 78

COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
Oil feed Flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
Oil Feed Gasket: Product Code: GRT-GSK-011
Oil drain flange: Product Code: ATP-FLA-009
Oil drain gasket: Product Code: GRT-GSK-007

COMPRESSOR MAP:

APPLICABLE GARRETT PART NUMBERS:

CHRA 751450-5016S
