Catalog Home > Turbos & Housings > Garrett G-XRACE

Garrett Supercore G-XRace GXR42-72 - 72mm GXRace, 1450HP Capable, PN: 934173-5002S

Quantity in Basket: None
Code: GRT-TBO-S32
Price: $2,999.95
Shipping Weight: 10.00 pounds

Quantity:

Garrett Supercore G-XRace GXR42-72 - 72mm GXRace, 1450HP Capable, PN: 934173-5002S

Product Description:
    Garrett Supercore G-XRace GXR42-72 - 72mm GXRace, 1450HP Capable, P/N: 934173-5002S

    ** Please add a turbine housing of your choice to this Supercore in order to complete a turbo unit. The G-XRace42 uses the same turbine housing as the G-Series G42 turbo.
Product Features:
  • XBoost Techology increases power and performance
  • +29% compressor flow (GXR45-67 compared to G45-1125)
  • +11% compressor flow (GXR45-73 compared to G45-1350)
  • Enhanced pressure ratio capability and higher boost pressure
  • Increased efficiency at high flow rates
  • Lower intake temperature
  • Lightweight aluminum backplate
  • Twin-scroll T4 and V-band turbine inlet flanges available to meet the needs of racers with different engines and manifold designs
Product Specifications:
  • Compressor Wheel Inducer: 72.9mm
  • Compressor Wheel Exducer: 102mm
  • Compressor Wheel Trim: 52
  • Compressor Housing A/R: 0.85
  • Turbine Wheel Inducer: 82mm
  • Turbine Wheel Exducer: 75mm
  • Turbine Wheel Trim: 84

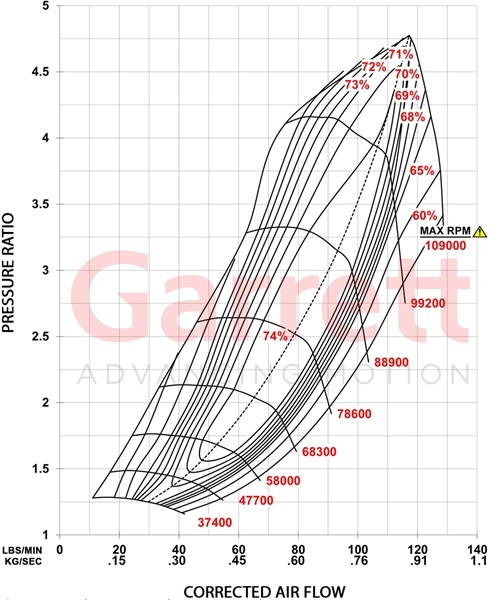

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor Map: Garrett Part Numbers:
  • 934173-5002S





Download GXRace Flyer PDF


Related Item(s)
Related Parts:
Code Name Price
ATP-HSG-514 Turbine housing Kit, Garrett G42 Series, 1.01 A/R, T4 divided entry, v-band exit, P/N: 757707-0014 $987.53
ATP-HSG-515 Turbine housing Kit, Garrett G42 Series, 1.15 A/R, T4 divided entry, v-band exit, P/N: 757707-0015 $987.53
ATP-HSG-516 Turbine housing Kit, Garrett G42 Series, 1.28 A/R, T4 divided entry, v-band exit, P/N: 757707-0016 $987.53
ATP-HSG-511 Turbine housing Kit, Garrett G42 Series, 1.01 A/R, v-band entry, v-band exit, P/N: 757707-0011 $939.36
ATP-HSG-512 Turbine housing Kit, Garrett G42 Series, 1.15 A/R, v-band entry, v-band exit, P/N: 757707-0012 $939.36
ATP-HSG-513 Turbine housing Kit, Garrett G42 Series, 1.28 A/R, v-band entry, v-band exit, P/N: 757707-0013 $939.36
