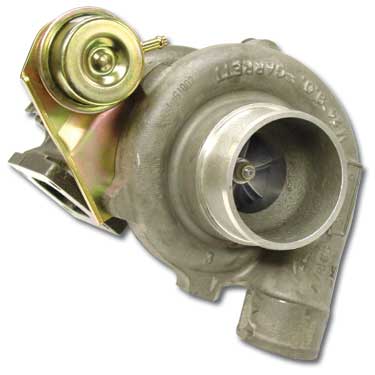

Garrett GT2860RS (aka GT28RS) Ball Bearing Turbo

Garrett GT2860RS (aka GT28RS) Ball Bearing Turbo Quantity in Basket: None
Code: GRT-TBO-004
Price: $1,257.10
Shipping Weight: 15.00 pounds

Turbo Housing A/R:
Specify Turbine Housing Style:
T25 Flanged Internally Wastegated with built in swingvalve
T3 Flanged with 5 bolt Standard T3/T4 Style
T3 Flanged 4 bolt Standard
K24_K26 .63 or .82 Available Only
Tial_Stainless_Vband
T25 Plus, T25 Inlet Flanged, T31-V Band Outlet Turbine Housing
Special Turbine Housing T25-EWG-44
T31 V-band Housing
  Check this box if you want to convert the T25 turbine entry to V-Band ($50 Option)
Optional Polished Housing($75):
Polished Option
Compressor_HSG Option:
Standard GT28RS Style
GT28R Style Compressor HSG
Garrett_Part Number Selection (Optional):
If T25 IntWG housing, Specify Actuator pressure (Optional) :

Quantity:


Dual Ball Bearing GT28RS turbo assembly with T25 style turbine inlet. Comes with internal wastegate pre-assembled. This turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 350HP. This turbo would be comparable to the HKS GT2530.

Turbine
-Wheel: 53.85mm w/ 76 trim
-Housing: .64 or .86 ar
-Maps

Compressor
-Wheel: 60mm w/ 62 trim
-Housing: .60 ar
-Maps

This unit is usually in stock and ships withing 1-2 days.


Applicable Garrett P/N's:

739548-5001S

739548-5005S

739548-5009S

739548-5010S

739548-5014S

739548-0001

739548-0005

739548-0009

739548-0010

739548-0014

739548-1

739548-5

739548-9

739548-10

739548-14
