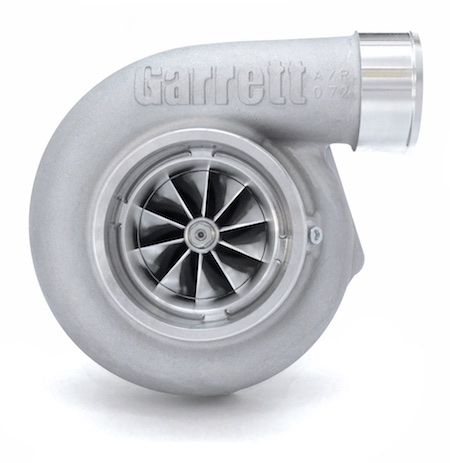

Garrett GTX3584RS (with TiAL Compatible Turbine Housing)

Garrett GTX3584RS (with TiAL Compatible Turbine Housing) Quantity in Basket: None
Code: GRT-TBO-587
Price: $2,702.14
Shipping Weight: 25.00 pounds

Turbine Housing Options:
V-Band Inlet & Outlet .82 A/R
V-Band Inlet & Outlet 1.03 A/R
SELECT Compressor Housing:
4" Inlet, Anti-Surge, and 2.5" Outlet (Default/Standard)
OPTIONAL POLISHED: 4" Inlet, Anti-Surge, and 2.5" Outlet (+$75.00)

Quantity:






PRODUCT DESCRIPTION:
Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and TiAL compatible flanged V-Band inlet & outlet turbine housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!


PRODUCT FEATURES:
  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Compact package capable of 1,000HP



  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 inch diameter
  • Compressor Housing Outlet: 2.5 inch diameter
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84



  • TURBINE HOUSING OPTIONS:
  • TiAL compatible V-Band inlet and V-Band outlet, 0.82 A/R
  • TiAL compatible V-Band inlet and V-Band outlet, 1.03 A/R



  • COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
  • Coolant (water) banjo kit: Product Code: ATP-FTG-003
  • Oil feed options: -3 AN with built-in Restrictor (Product Code: ATP-OIL-036) OR -3 AN unrestricted (Product Code: ATP-FTG-039)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: ATP-GSK-008
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031


  • NOTE: Alternate coolant and oil fittings and flanges are available.


    APPLICATION NOTES:
  • The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

    Please also note that TiAl does not currently produce a turbine housing for the GTX84RS - Therefore ATP is offering this "TiAl compatible" turbine housing option in order to make this turbo "Kit Compatible" into existing Turbo kits that utilize the same style turbine housing.

    COMPRESSOR & TURBINE MAPS:



    APPLICABLE GARRETT PART NUMBERS:
  • 846098-5001S


  • Related Item(s)
    Related Parts:
    Code Name Price
    ATP-FLS-093 FL-VBTIAL-GT283035-INLET $49.00
    ATP-FLS-094 FL-VBTIAL-GT283035-OUT $49.00
    CLC-CLA-025 Tial Stainless V-band Clamp, Turbine inlet (manifold side) for Tial V-Band Housing GT28 /GT30/GT35 $48.00
    CLC-CLA-026 Tial Stainless V-band Clamp, Turbine (downpipe side) OUTLET for Tial V-Band Housing GT28/GT30/GT35 $48.00
