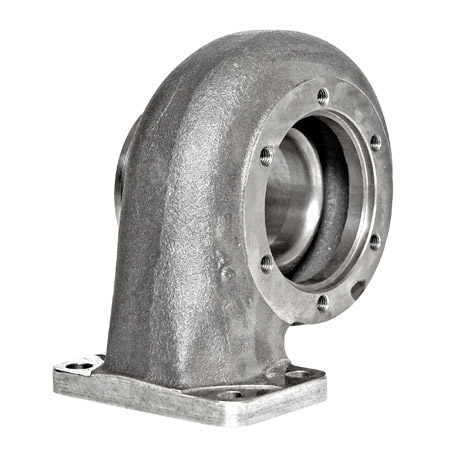

Turbine Housing With T3 Undivided Inlet And 3" GT V-Band Exit
Quantity in Basket:
None
Code:
ATP-HSG-044
Price:
$596.82
Shipping Weight:
12.00 pounds
Garrett GT turbine housing. T3 Undivided inlet and 3" GT V-Band exit. Specify A/R .63, .82, or 1.06. Also specify GT30R, GT35R, or GT3071R.
Applicable Garrett P/N's:
740902-0007 = 1.06a/r GT30R
740902-0008 = .82a/r GT30R
740902-0009 = .63a/r GT30R
740902-0010 = 1.06a/r GT35R
740902-0011 = .82a/r GT35R
740902-0012 = .63a/r GT35R
INSTALLATION COMPONENTS:
T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
T3 Inlet Gasket: Product Code:GRT-GSK-005
GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
V-Band Clamp: Product Code:CLC-CLA-048
Turbine Housing to CHRA Mount Kit: Product Code:ATP-FST-039
Related Item(s)
Related Parts:
|
Code
|
Name
|
Price
|
|
|
CLC-CLA-052
|
FLANGE AND CLAMP SET, Stainless Downpipe 3" GT V-band (w/ Protruded 81mm lip at the ID) 90mm OD
|
$49.00
|
|
GRT-GSK-005
|
Gasket, T3 Turbine Inlet - UNDIVIDED
|
$6.95
|
|
ATP-FST-039
|
Turbine Housing Clamps and Bolt Kit, Hardware to fasten CHRA to Turbine Housing
|
$19.95
|
|
ATP-FLS-038
|
Stainless Steel - T3 Inlet Weld Flange
|
$39.00
|
|
ATP-FLS-246
|
DOWNPIPE FLANGE, Stainless 3" GT V-Band w/ 81mm protruded lip, Garrett Housings with 90mm (3.55”) OD
|
$26.00
|
|
CLC-CLA-048
|
CLAMP, V-Band DOWNPIPE SIDE 3" Garrett "GT V-Band" Turbine Housing w/ 90mm OD Flange GTX G25 G30 G35
|
$22.95
|
