Catalog Home > Turbos & Housings > Garrett GTX Gen2 > Garrett GTX3576R Gen2 Variants > GEN2 GTX3576R with Alternate Comp Housings

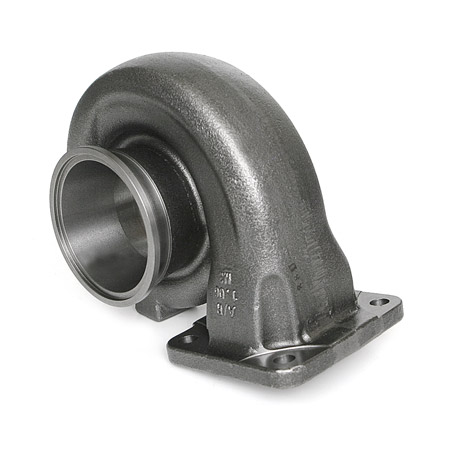

Turbine Housing T4 Undivided inlet GT 3" V-Band out, GT35R(GT3582R) also any GTX35

Quantity in Basket: None
Code: ATP-HSG-046
Price: $509.64
Shipping Weight: 6.00 pounds

Quantity:

Choose Turbine A/R:
1.06 A/R
.82 A/R
.63 A/R

Special Option: For GTX3584RS ($50 add'l)
Turbine Housing T4 Undivided inlet GT 3
Turbine housing, T4 Undivided inlet, 3" GT V-Band outlet. For GT35R (GT3528R)also any GTX35
Applicable Garrett P/N's:

740902-0016 = 1.06a/r

740902-0017 = .82a/r

740902-0018 = .63a/r


INSTALLATION COMPONENTS:
  • GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
  • V-Band Clamp: Product Code:CLC-CLA-048
  • Turbine Housing to CHRA Mount Kit: Product Code:ATP-FST-039


  • Related Item(s)
    Related Parts:
    Code Name Price
    CLC-CLA-052 FLANGE AND CLAMP SET, Stainless Downpipe 3" GT V-band (w/ Protruded 81mm lip at the ID) 90mm OD $49.00
    GRT-GSK-006 Gasket, T4 (T04) Turbine Inlet - UNDIVIDED $8.00
    ATP-FLS-043 Flanged Stainless Transition / reducer, 3" to 4", LONG VERSION $69.00
    ATP-FST-039 Turbine Housing Clamps and Bolt Kit, Hardware to fasten CHRA to Turbine Housing $19.95
    ATP-ACS-022 Garrett Turbine Housing Heatshield, Stainless $52.88
    ATP-FLS-019 Mild Steel - T4 Inlet Weld Flange $23.00
    ATP-FLS-200 Stainless Steel - T4 Inlet Weld Flange $49.00
    ATP-FLS-246 DOWNPIPE FLANGE, Stainless 3" GT V-Band w/ 81mm protruded lip, Garrett Housings with 90mm (3.55) OD $26.00
    CLC-CLA-048 CLAMP, V-Band DOWNPIPE SIDE 3" Garrett "GT V-Band" Turbine Housing w/ 90mm OD Flange GTX G25 G30 G35 $22.95
