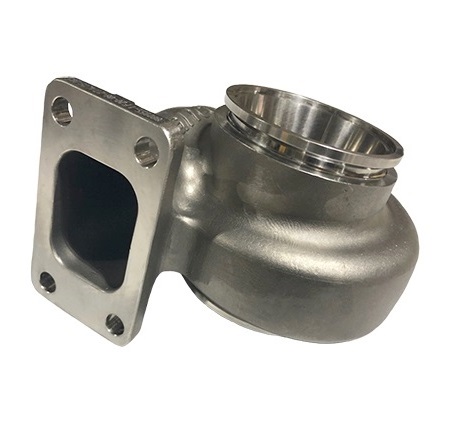

Turbine Housing Kit, Garrett G30 REVERSE ROTATION, 0.83 A/R O/V, T3 In/VB Out, P/N: 740902-0100
Quantity in Basket:
None
Code:
ATP-HSG-630
Price:
$772.59
Shipping Weight:
10.00 pounds
Product Description:
Garrett® G30 REVERSE ROTATION turbine housing kit, 0.83 A/R O/V, Open (undivided) T3 In/ V-Band Out.
Product Features:
- V-band configurations have 360 degree clockability
- Stainless steel turbine housings for temperatures up to 1050°C | 1922°F
- T3 Open (undivided) inlet (same flange size and placement as GTX)
- 3.5" (90.16mm) V-band outlet (same flange size and placement as GTX)
Product Specifications:
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
Installation Hardware:
- Outlet V-Band Flange (For Downpipe Side): ATP-FLS-351
- Outlet V-Band Clamp (For Downpipe Side): CLC-CLA-048
- T3 gasket: GRT-GSK-005
- V-Band Clamp – CHRA to Turbine Housing: ATP-HSG-561
Garrett Part Number:
740902-0100
