Turbine Housing Kit, Garrett G35 STANDARD ROTATION, 1.06 A/R DIVIDED, T4 In/VB Out, P/N: 740902-0108
Quantity in Basket:
None
Code:
ATP-HSG-637
Price:
$752.59
Shipping Weight:
3.00 pounds
Product Description:

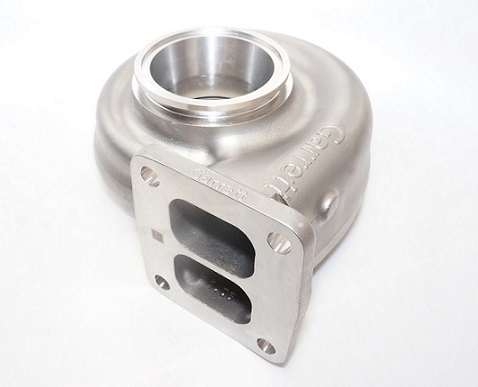

Garrett® G35 STANDARD ROTATION turbine housing kit, 1.06 A/R O/V, DIVIDED (TWINSCROLL) T4 In/ V-Band Out.
Product Features:
- V-band configurations have 360 degree clockability
- Stainless steel turbine housings for temperatures up to 1050°C | 1922°F
- T4 Divided (twinscroll) inlet (same flange size and placement as GTX)
- 3.5" (90.16mm) V-band outlet (same flange size and placement as GTX)
Product Specifications:
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
Installation Hardware:
- Outlet V-Band Flange (For Downpipe Side): ATP-FLS-351
- Outlet V-Band Clamp (For Downpipe Side): CLC-CLA-048
- T4 Divided gasket: ATP-GSK-014
- V-Band Clamp – CHRA to Turbine Housing: ATP-HSG-561
Garrett Part Number:
740902-0108
