Catalog Home > Turbos & Housings > Garrett GTX Gen2 > Garrett GTX2860R Gen2 Variants

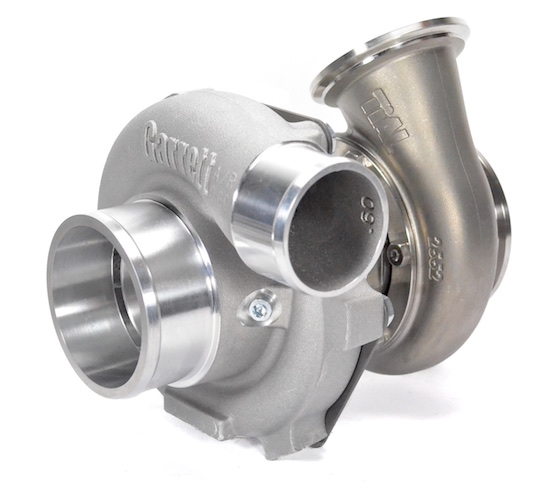

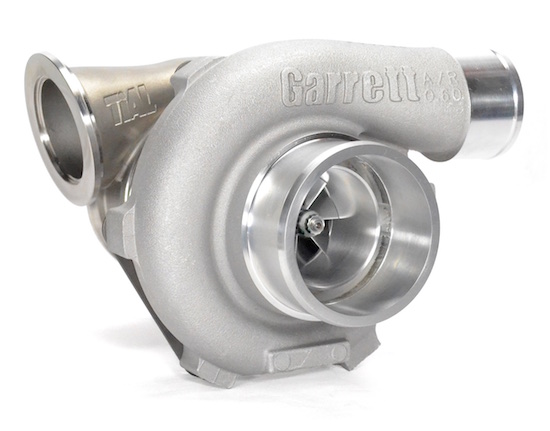

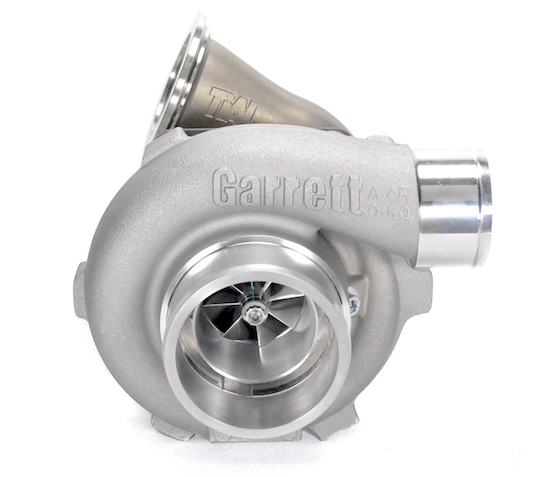

GEN2 - Garrett GTX2860R Turbo with .52 A/R Stainless Tial V-band Turbine Housing

Quantity in Basket: None
Code: GRT-TBO-754
Price: $2,098.06
Shipping Weight: 3.00 pounds

Quantity:


Optional: Compact GT2554R Frame Comp Housing
GEN2 - Garrett GTX2860R Turbo with .52 A/R Stainless Tial V-band Turbine Housing


Click to enlarge images

PRODUCT DESCRIPTION:
Garrett GEN2 GTX2860R dual ball bearing turbocharger, including a TiAL Stainless Steel .52 A/R, V-Band Inlet and V-Band Outlet Turbine Housing. Advanced GEN2 billet compressor wheel capable of 475HP!


PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 46mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 47mm
  • Turbine Wheel Trim: 76
  • Turbine Housing A/R: .52


  • COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

  • V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
  • V-Band Inlet Clamp: Product Code:CLC-CLA-025
  • V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-094
  • V-Band Outlet Clamp: Product Code:CLC-CLA-026

  • NOTE: Alternate coolant and oil fittings and flanges are available.



    COMPRESSOR & TURBINE MAPS:



    APPLICABLE GARRETT PART NUMBERS:
  • 849894-5001S
