PRODUCT DESCRIPTION:

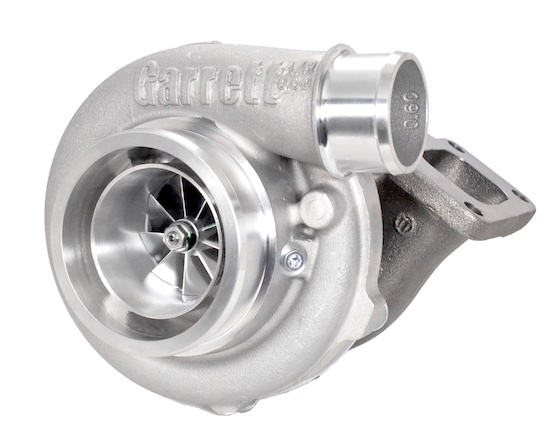

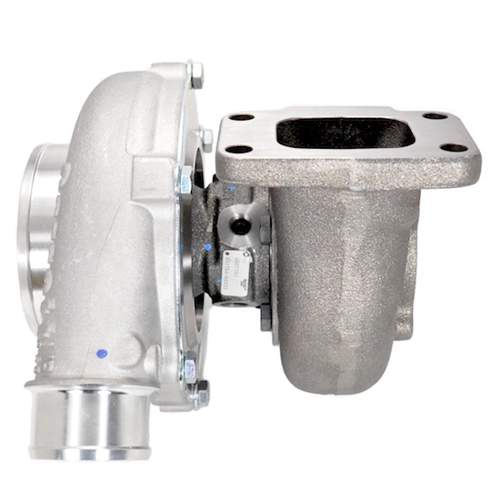

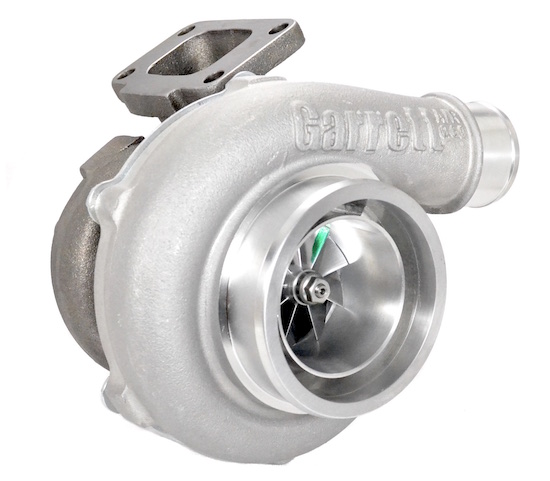

GEN2 - Garrett GTX3576R Turbo with a .63 A/R T3 Turbine Housing (ATP-HSG-055) & "T31" Narrow 4 bolt exit. Supports up to 750HP!

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 58mm

Compressor Wheel Exducer: 76mm

Compressor Wheel Trim: 58

Compressor Housing: 0.60 A/R T04E Frame, Ported Shroud 4" Inlet, 2" Outlet

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84

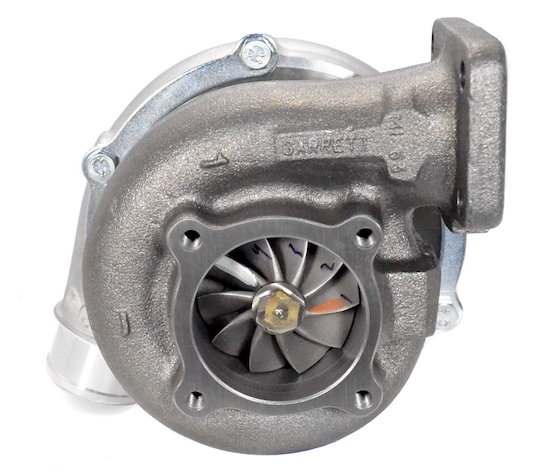

Turbine Housing: .63 A/R T3 Inlet and 4 Bolt "T31" Exit

COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:

Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines

Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)

Oil drain flange: Product Code: ATP-FLA-010

Oil drain gasket: Product Code: GRT-GSK-008

T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038

T3 Inlet Gasket: Product Code:GRT-GSK-005

4 Bolt Outlet Flange (for Downpipe): Product Code:ATP-FLS-084

4 Bolt Outlet Gasket: Product Code:ATP-GSK-012

NOTE: Alternate coolant and oil fittings and flanges are available.

COMPRESSOR & TURBINE MAPS:


APPLICABLE GARRETT PART NUMBERS:

851154-5003S
