Catalog Home > Turbos & Housings > Garrett GTX Gen2 > Garrett GTX3076R Gen2 Variants > GEN2 GTX3076R with T3 Housings

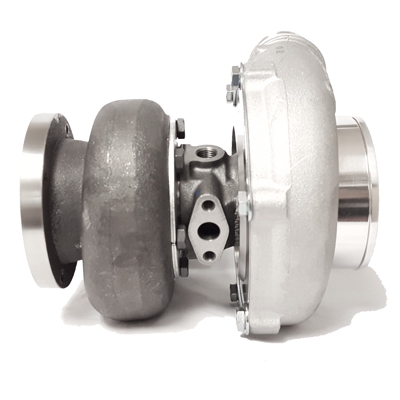

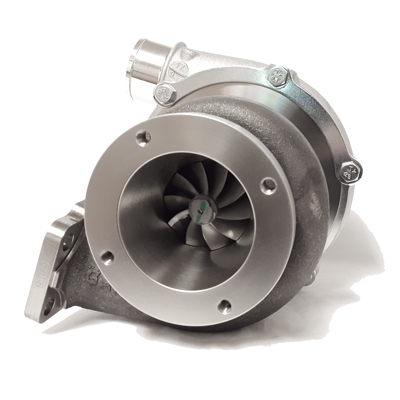

Gen2 GTX3076R DBB turbo w/ .63 A/R T3 Tbn Hsg "GT 4BOLT 3" conical exit

Quantity in Basket: None
Code: GRT-TBO-B67
Price: $2,415.34
Shipping Weight: 8.00 pounds

Quantity:

Gen2 GTX3076R DBB turbo w/ .63 A/R T3 Tbn Hsg



Product Description:
    Garrett GEN2 GTX3076R dual ball bearing turbocharger with .63 A/R T3 turbine housing and "GT 4BOLT 3" conical exit.

    Advanced GEN2 billet compressor wheel capable of 750HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 58 mm
  • Compressor Wheel Exducer: 76 mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60 mm
  • Turbine Wheel Exducer: 55 mm
  • Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett Part Numbers:
  • 851154-5001S


Related Item(s)
Related Parts:
Code Name Price
ATP-OIL-021 -4 size Oil inlet fitting for GT28 GTX28 GT30 GTX30 GT35R G25 G30 G35 w/ built-in .035" RESTRICTOR $12.00
ATP-FLA-010 Aluminum - Oil Drain ( return ) Flange (GT25, GT28, GTX28, GTX29, GT30, GTX30, GT35, GTX35, T25, T28 $13.95
GRT-GSK-008 Oil Drain ( Return ) Flange Gasket - GT GTX Series GT25 through GTX35 and G25 G30 G35 $3.00
MIA-FST-030 8mm (1.25pitch) Stud $1.00
MIA-FST-031 8mm (1.25pitch) Nut, Locking Head $1.00
