Catalog Home > Turbos & Housings > Garrett GTX Gen2 > Garrett GTX3582R Gen2 Variants

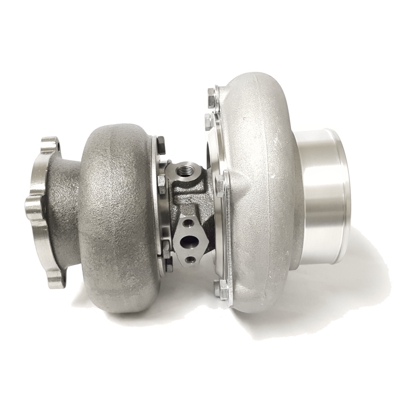

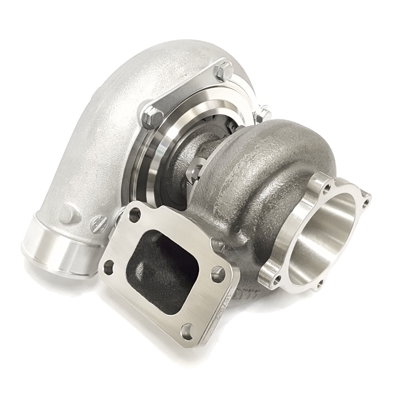

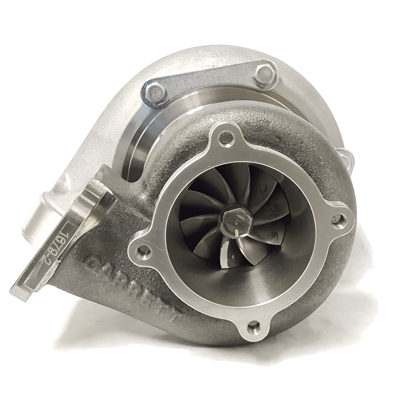

Gen2 GTX3582R DBB turbo w/ 1.06 A/R T3 Tbn Hsg, GT 4 BOLT 3" conical exit

Quantity in Basket: None
Code: GRT-TBO-C26
Price: $2,996.53
Shipping Weight: 8.00 pounds

Quantity:

Gen2 GTX3582R DBB turbo w/ 1.06 A/R T3 Tbn Hsg, GT 4 BOLT 3



Product Description:
    Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!
    • 1.06 A/R
    • Open (Undivided) T3 Turbine Housing (ATP-HSG-002)
    • 3" GT 4 Bolt conical exit

    The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 66mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.70, T04S Frame: 4" in / 2.5" out
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
Turbine Housing Options:
  • Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R
Alternative Turbine Housing Options: Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett Part Numbers:
  • 851154-5004S
  • 856801-5079S
  • 856801-5080S
  • 856801-5081S
