Catalog Home > Turbos & Housings > Garrett GTX Gen2 > Garrett GTX2860R Gen2 Variants

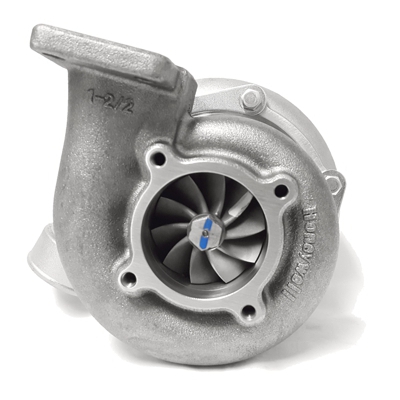

Gen2 GTX2860R DBB turbo w/ .82 A/R T3 Tbn Hsg w/ "T31" Narrow 4 bolt exit

Quantity in Basket: None
Code: GRT-TBO-F52
Price: $1,520.79
Shipping Weight: 3.00 pounds

Quantity:

Gen2 GTX2860R DBB turbo w/ .82 A/R T3 Tbn Hsg w/



Product Description:
    Garrett GEN2 GTX2860R dual ball bearing turbocharger with a .82 A/R T3 turbine housing and "T31" Narrow 4 bolt exit. Advanced GEN2 billet compressor wheel capable of 475HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 46mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 47mm
  • Turbine Wheel Trim: 76
  • Turbine Housing A/R: .82
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Garrett Part Numbers:
  • 849894-5001S
  • 856800-5003S
