Catalog Home > Turbos & Housings > Garrett GT - Ball Bearing > GT3582R With Special Housings

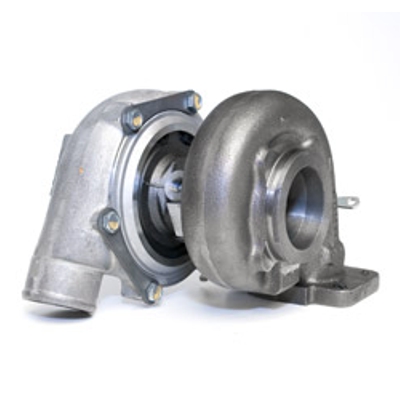

GT3582R dual ball bearing turbo with .82 A/R T31 "Narrow" V-Band Exit Turbine Hsg

Quantity in Basket: None
Code: GRT-TBO-G46
Price: $1,795.00
Shipping Weight: 3.00 pounds

Quantity:

GT3582R dual ball bearing turbo with .82 A/R T31



Product Description:
    Garrett GT3582R turbo with .82 A/R T31 "Narrow" v-band exit turbine housing. Supports 650HP+ potential flow.

Product Specifications:
  • Compressor Wheel Inducer: 61.4mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 56
  • Compressor Housing: 0.70 A/R
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62.3mm
  • Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett Part Numbers:
  • 714568-5012S
