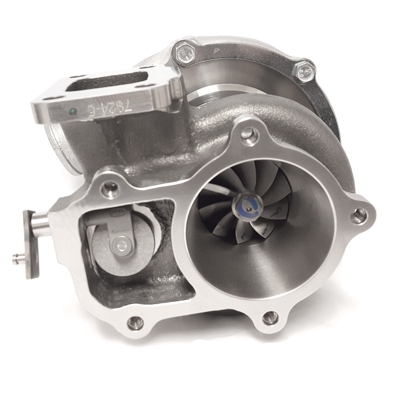

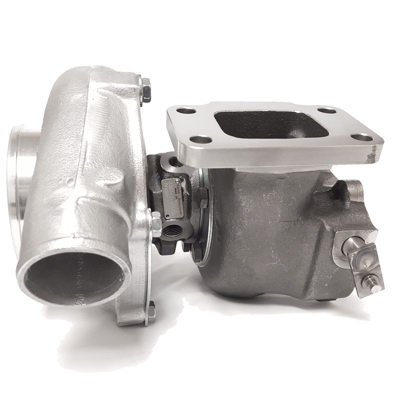

Turbo - Garrett GT3582R DBB turbo w/ Garrett .63 A/R T3 Int W/G w/ GT 5 bolt exit

Quantity in Basket: None
Code: GRT-TBO-G74
Price: $1,614.99
Shipping Weight: 3.00 pounds

Quantity:

Turbo - Garrett GT3582R DBB turbo w/ Garrett .63 A/R T3 Int W/G w/ GT 5 bolt exit



Product Description:
    Garrett GT3582R 4" in / 2" out turbo with Garrett .63 A/R T3 internal W/G, GT 5 bolt exit turbine housing. 650+HP potential flow.
Product Features:
  • Genuine Garrett GT Aero compressor wheel
  • Genuine Garrett GT Inconel turbine wheel
  • Dual ball bearing CHRA rotating assembly

Product Specifications:
  • Compressor Wheel Inducer: 61.4mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 56
  • Compressor Housing: 0.70 A/R
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62.3mm
  • Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett Part Numbers:
  • 714568-5012S
