Garrett GTW3884JB 64mm (aka GTW6465JB) Journal Bearing SuperCore, P/N 841297-5004S
Quantity in Basket:
None
Code:
GRT-TBO-H50
Price:
$989.58
Shipping Weight:
3.00 pounds
Product Description:

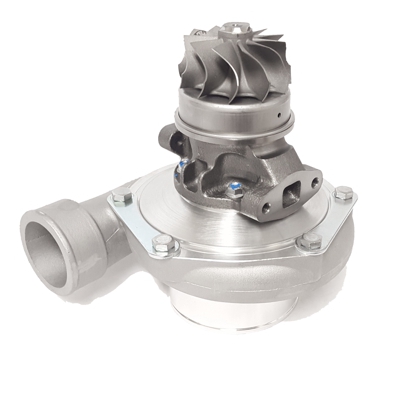

Garrett GTW3884 64mm (aka GTW6465JB) journal bearing supercore (turbo w/o turbine housing) turbo. 950 HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6766 size turbo. Great performance at a competitive price!
Product Specifications:
- Compressor Wheel Inducer: 64.3mm
- Compressor Wheel Exducer: 84.4mm
- Compressor Wheel Trim: 64
- Turbine Wheel Inducer: 74.2mm
- Turbine Wheel Exducer: 64.6mm
- Turbine Wheel Trim: 76

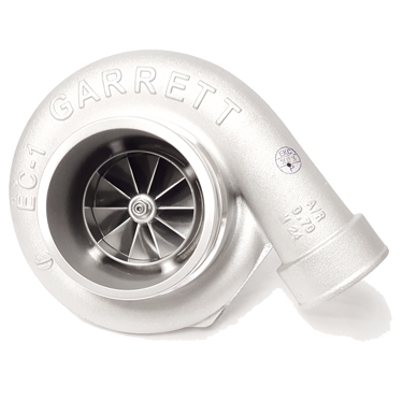

- Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
Application Notes:
- NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
- External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
- GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
Oil Fittings, Flanges, and Components Solutions:
Turbine Housing Options:
- T3 Inlet and 4 Bolt, 2.5 inch Outlet (Available in .63, or .82 A/R) Default / Standard Option
- T3 Non-Divided Inlet and machined V-band 2.5 inch Outlet (Available in .63, .82, or 1.08 A/R)
- T3 Inlet and welded 3.0 inch GT V-Band (90mm OD) Outlet (Available in .63, .82, or 1.08 A/R)
- T3 Divided inlet and 4 Bolt, 3.0 Inch Outlet (Available in 1.16 A/R)
- T3 Divided inlet and 3.0 Inch V-Band Outlet Adapter (Available in 1.16 A/R) - Additional $50.00 option
- T3 Divided inlet and V-Band, 3.0 inch Outlet (Available in .78 or 1.06 A/R)
- T3 Inlet and 5 Bolt Ford Style Outlet (Available in .63, or .82 A/R)
- T4 Inlet and V-Band, 3.0 inch Outlet (Available in .68, .81 or .96 A/R)
- T4 Divided inlet and V-Band, 3.0 inch Outlet (Available in .70, .84, 1.00, 1.15, or 1.32 A/R)
- V-Band Inlet (T3 machined) and 2.5 inch V-Band Outlet (Available in .63 A/R). NOTE: V-Band Inlet Clamp & Manifold Flange (Product Code: CLC-CLA-040)
- V-Band Inlet (T3 machined) and 2.5 inch V-Band Outlet (Available in .82 A/R). NOTE: V-Band Inlet Manifold Flange (Product Code: ATP-FLS-093)
Applicable Garrett Part Numbers:
- 715582-5009S
- 841297-5004S
