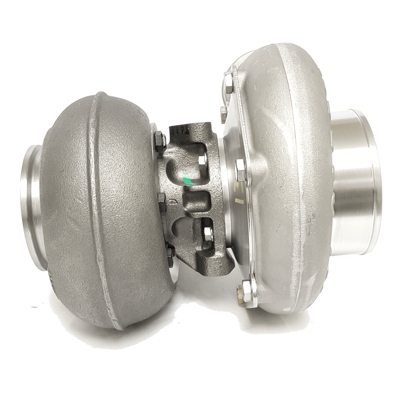

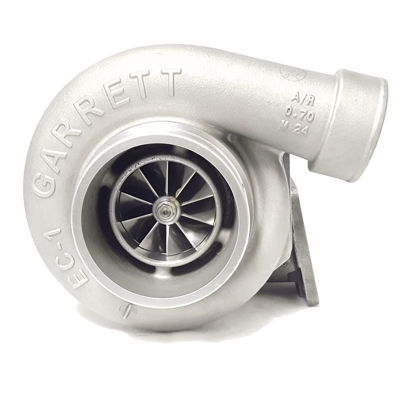

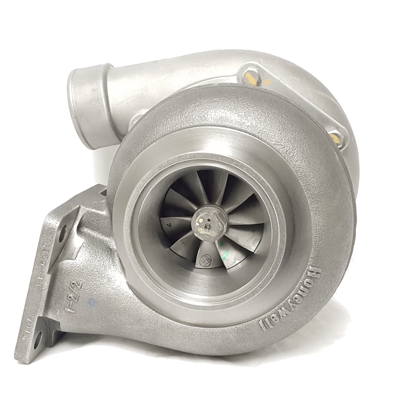

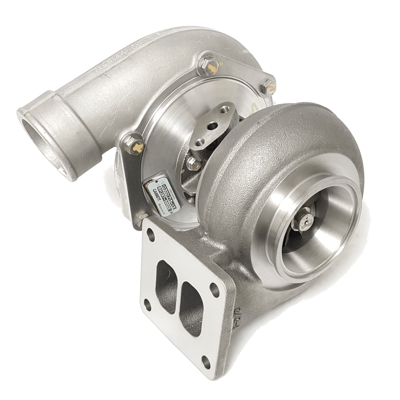

Garrett GTW3684JB (aka GTW6262JB) Journal Brg Tbo .70 A/R T4 Divided with 3" V-band

Quantity in Basket: None
Code: GRT-TBO-H63
Price: $1,295.00
Shipping Weight: 3.00 pounds

Quantity:

Garrett GTW3684JB (aka GTW6262JB) Journal Brg Tbo .70 A/R T4 Divided with 3


Product Description:
    Garrett GTW3684JB (aka GTW6262JB) journal bearing turbo with .70 A/R T4 divided, 3" v-band turbine housing. 750 HP potential flow.

    GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price!
Product Specifications:
  • Compressor Wheel Inducer: 62.3mm
  • Compressor Wheel Exducer: 84.4mm
  • Compressor Wheel Trim: 54
  • Turbine Wheel Inducer: 71.0mm
  • Turbine Wheel Exducer: 61.9mm
  • Turbine Wheel Trim: 76
  • Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
Application Notes:
  • NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
  • External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
  • GTW Series CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett Part Numbers:
  • 715582-5007S
