Catalog Home > Turbos & Housings > Garrett GTX Gen2 > Garrett GTX3071R Gen2 Variants

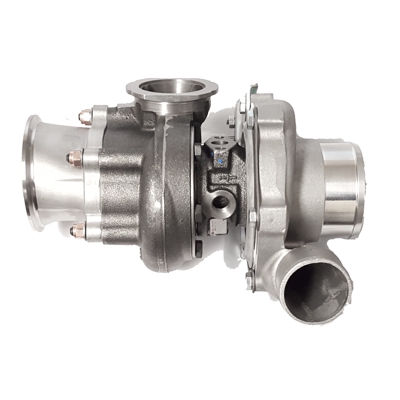

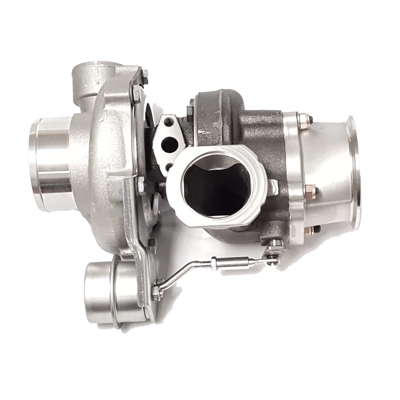

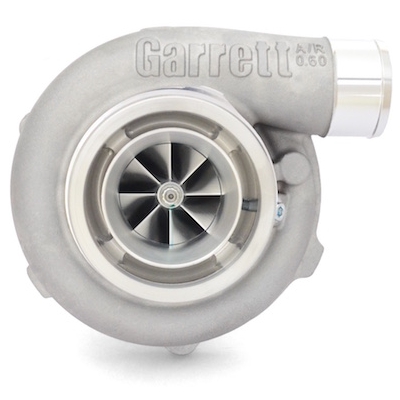

Gen2 GTX3071R 4" inlet and 2" outlet T04E Frame with Anti-Surge DBB turbo w/ .86 A/R VB25 int. wg.

Quantity in Basket: None
Code: GRT-TBO-H67
Price: $1,989.00
Shipping Weight: 3.00 pounds

Quantity:


Optional_Selection: .64 A/R Turbine Side

Optional_Selection: T04B(GT28 size) Compressor Housing
Gen2 GTX3071R 4



Product Description:
    Garrett GEN2 GTX3071R anti-surge 4" inlet and 2" outlet T04E frame dual ball bearing turbocharger with .86 A/R VB25 internally gated (1 bar actuator) "GT28 style" 5 bolt into 3" v-band turbine housing. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps: Applicable Garrett Part Numbers:
  • 851154-5002S
